| Engine Detail |

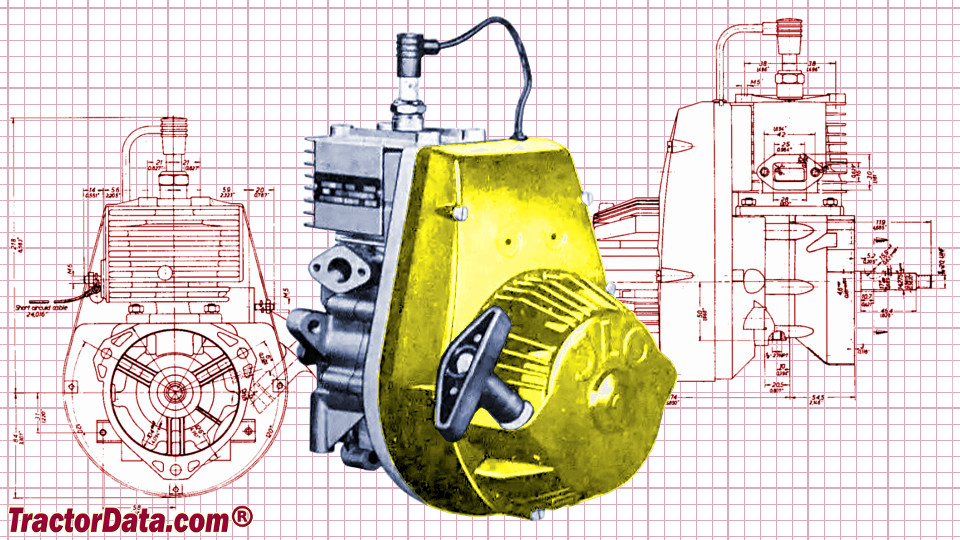

| JLO L99 |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 989 cc
60.4 ci
|
| Bore/Stroke | 2.165x1.653 inches
55 x 42 mm
|
| Power | 4.75 hp
3.5 kW
|
| Fuel system | Tillotson HL-2708 carburetor
|
| Compression | 6.1:1
|
| Rated RPM | 5500
|
| Starter type | manual recoil
|
| Sparkplug | Bosch M240T1
|
| Sparkplug gap | 0.018 inches
0.457 mm
|
| Yard-Man Sno-Cub Engine |
 |
