Craftsman 917.25574 Engine


Craftsman 917.25574 tractor photo
1986
Lawn tractor
Roper built
Engine Detail
Tecumseh OVM120
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement357 cc
21.8 ci
Bore/Stroke3.31x2.53 inches
84 x 64 mm
Power (gross)12 hp
8.9 kW
Starterelectric
Starter volts12
Engine Oil

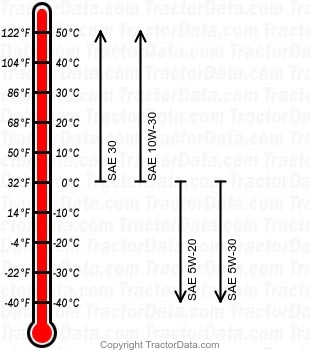

917.25574 gasoline engine oil chart
Oil change50 h
Craftsman 917.25574 Engine

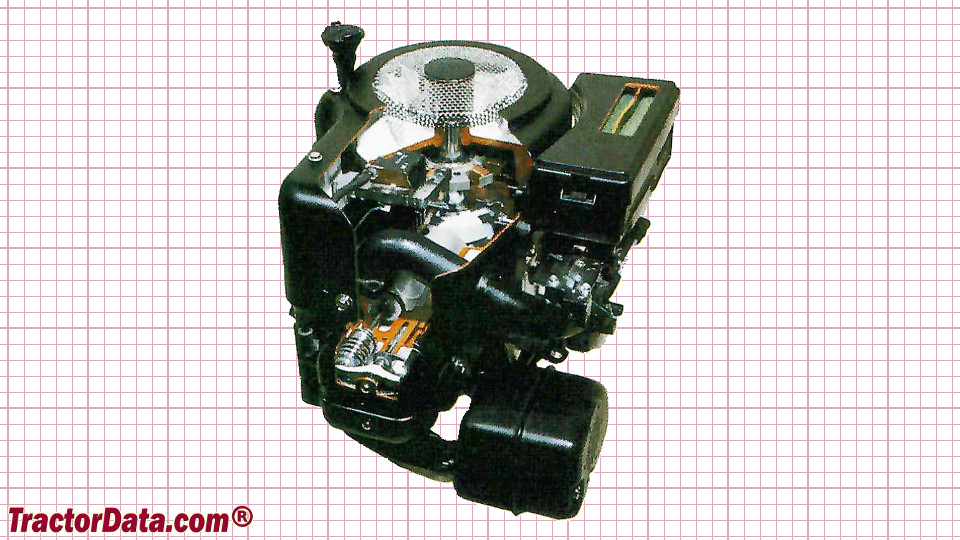

Craftsman 917.25574 engine image
