Craftsman 536.27034
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | Swisher |
| Riding lawn mower | |
| Craftsman 536.27034 Engine | |
| 12.5HP Briggs & Stratton 344cc 1-cyl gasoline | |
| Fuel tank | 1.1 gal 4.2 L |
 Engine details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Mid PTO Type | pulley |
| Craftsman 536.27034 attachments | |
| 30" mid-mount mower deck | |
 Attachment details ... |

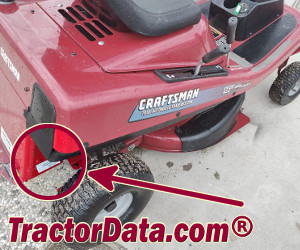

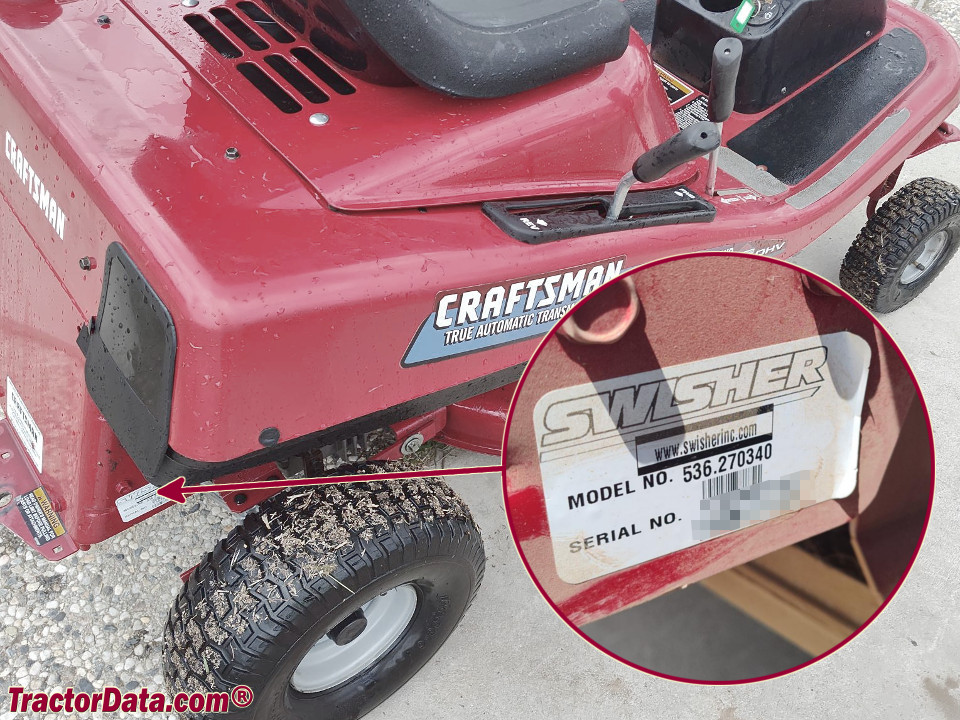

| 536.27034 Serial Number Location | |
 | |
| Serial number decal on the left side of the mower, behind the rear tire. |
| Electrical | |
| Ground | negative |
| Charging amps | 3 |
| Battery volts | 12 |
| References | |
 | |
| Operator's manual 536.270340 (13533) published in 1973* | |
| *Publication contains known errors. |
