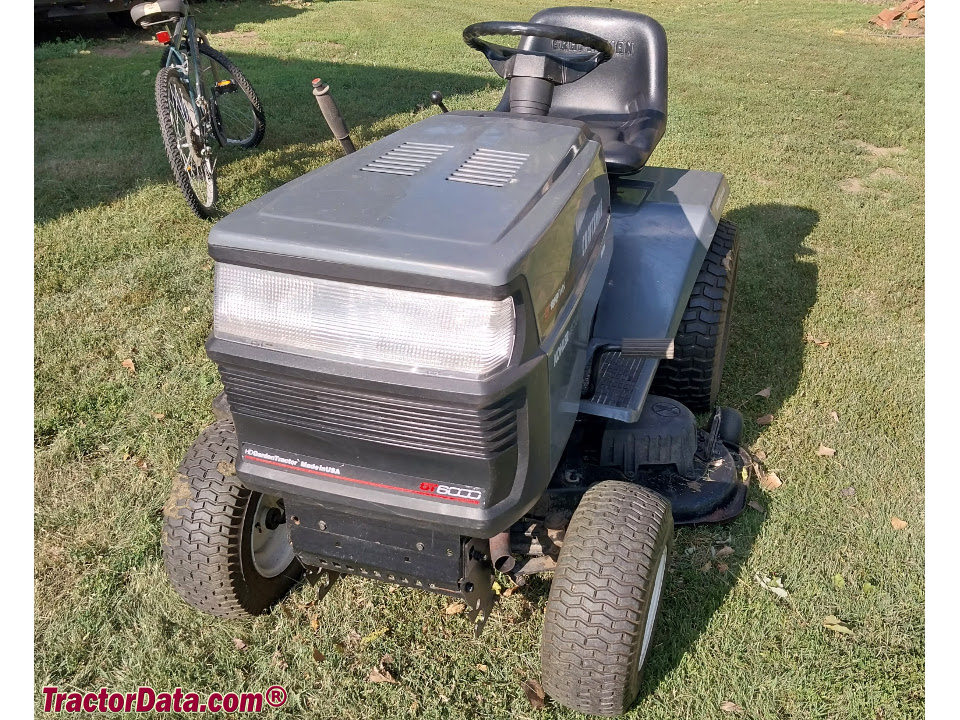

Craftsman 917.25049
| | 1995 |
| GT6000 Series | | Garden tractor | | AYP built |
|
Series map:
917.25049
18.0hp
| Production |
| Distributor | Craftsman (a part of Sears)
|
| Manufacturer | AYP
|
| Garden tractor |
| Original price was $2,500 in 1995 |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Open operator station. |
| Power Take-off (PTO) |
| Mid PTO | independent
|
| Clutch | electric
|
| Mid PTO Type | pulley
|
| 917.25049 Serial Number Location |
 |
| Serial number decal below the seat on the tractor's rear fender assembly. |
| Electrical |
| Ground | negative
|
| Charging amps | 15
|
| Battery volts | 12
|
| References |
 |
| Owner's Manual Model Number 917.250490 (148917) published in 1995 |
