| | 1990 - 1994 |
| 1300 Series | | Front-mount mower | | Simplicity built |
|
Series map:
1313H
1316H
12.5hp
16.0hp
Note: the AGCO model 1316H is the same as the Simplicity 16FCH48. The following data is from the 16FCH48 listing. |
| Engine Detail |
| Briggs & Stratton |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 480 cc
29.3 ci
|
| Bore/Stroke | 2.68x2.60 inches
68 x 66 mm
|
| Power (gross) | 16 hp
11.9 kW
|
| Air cleaner | paper element with foam pre-cleaner
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 1.75 qts
1.7 L
|
| Oil change | 25 h
|

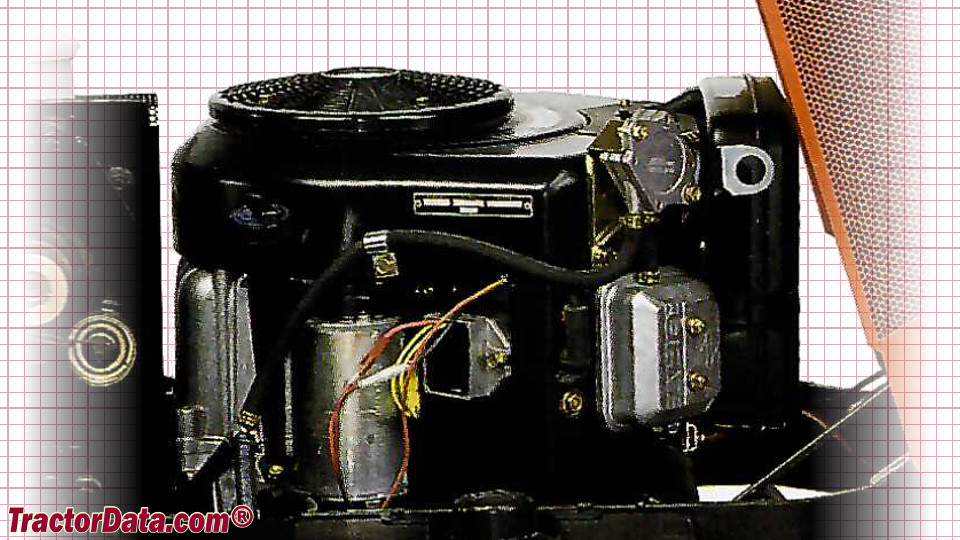

| AGCO 1316H Engine |
 |
