AGCO 1615G
|
|
Note: the AGCO model 1615G is the same as the Simplicity Broadmoor 15G. The following data is from the Broadmoor 15G listing. |
| Production | |
| Distributor | AGCO |
| Manufacturer | Simplicity |
| Lawn tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Original price was $3,200 in 1994 | |
| Variants | |
| Broadmoor 15G | similar Simplicity model |
| AGCO 1615G Engine | |
| 15HP Briggs & Stratton 465cc 1-cyl gasoline | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| AGCO 1615G Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the AGCO 1615G are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Wheelbase | 48 inches 121 cm |
| Weight | 540 lbs 244 kg |
| Front tire | 15x6.00-6 |
| Rear tire | 20x8.00-8 |
 Full dimensions and tires ... | |
| AGCO 1615G attachments | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

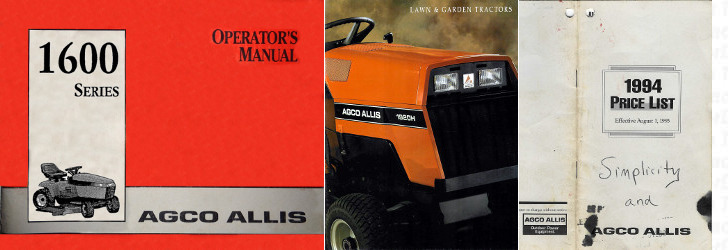

| Operator's Manual 1600 Series (1709980) published in 1994 | |
| Lawn & Garden Tractors published in 1994, by AGCO Allis | |
| 1994 Price List published in 1993, by Simplicity |
