AGCO 413H
|
|
Note: the AGCO model 413H is the same as the Simplicity Coronet 13H. The following data is from the Coronet 13H listing. |
| Production | |
| Distributor | AGCO |
| Manufacturer | Simplicity |
| Riding lawn mower | |
| AGCO 413H Engines | |
| 12.5HP Kohler 398cc 1-cyl gasoline | |
| 12.5HP Briggs & Stratton 465cc 1-cyl gasoline | |
| Fuel tank | 2 gal 7.6 L |
 Engine details ... | |
| AGCO 413H Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station with 13-inch seat. |
| Photos | |
| No photos of the AGCO 413H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Wheelbase | 43 inches 109 cm |
| Weight | 415 lbs 188 kg |
| Front tire | 13x5.0-6 |
| Rear tire | 16x6.5-8 |
 Full dimensions and tires ... | |
| AGCO 413H attachments | |
| 34" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

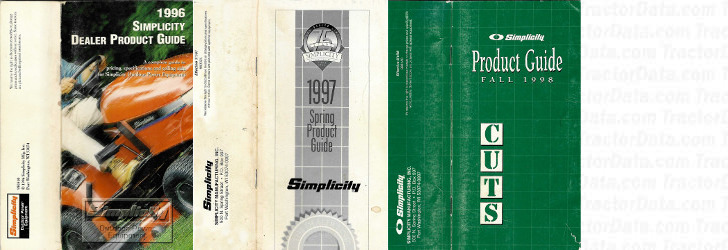

| 1996 Dealer Prduct Guide published by Simplicity | |
| 1997 Spring Product Guide published in 1996, by Simplicity | |
| Product Guide Fall 1998 published by Simplicity |
