Craftsman 917.25554


Craftsman 917.25554 tractor photo
1991
LT 4000 Series
Lawn tractor
AYP built
Production
DistributorCraftsman (a part of Sears)
ManufacturerAYP
Lawn tractor
Original price was $1,597 in 1991
Craftsman 917.25554 Engine
14HP Vanguard 480cc 2-cyl gasoline
Fuel tank2 gal
7.6 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Mid PTO Typepulley
Dimensions & Tires
Weight559 lbs
253 kg
Front tire15x6-6
Rear tire18x9.5-8
Full dimensions and tires ...

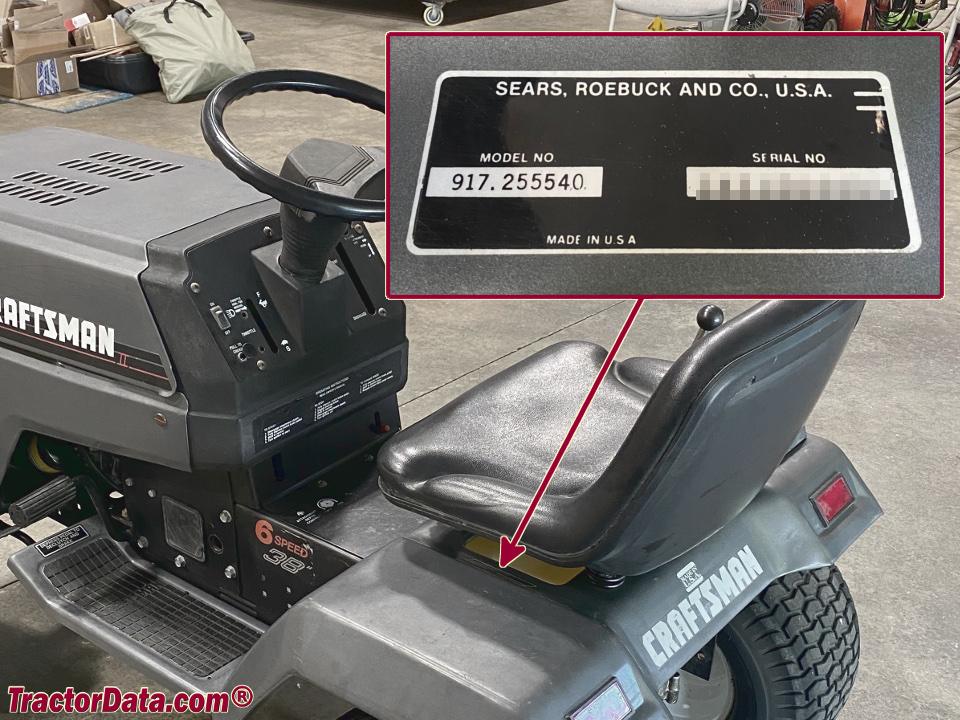

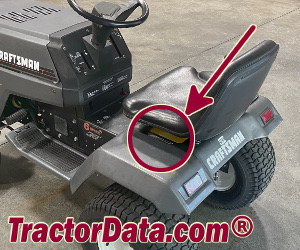

917.25554 Serial Number Location
Craftsman 917.25554 serial number location
Serial number plate on the rear fender deck, below the seat.
Electrical
Groundnegative
Charging amps16
Battery volts12
