Lawn Tractors > Allis Chalmers > 720

Allis Chalmers 720 Engine



Allis Chalmers 720 tractor photo
1975 - 1980
Garden tractor
Simplicity built
Series map:
720
19.5hp
Engine Detail
Onan CCKB
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement816 cc
49.8 ci
Bore/Stroke3.25x3.00 inches
83 x 76 mm
Power (gross)19.5 hp
14.5 kW
Air cleanerpaper element
Compression7:1
Rated RPM3600
Starter volts12
Oil capacity3.5 qts
3.3 L

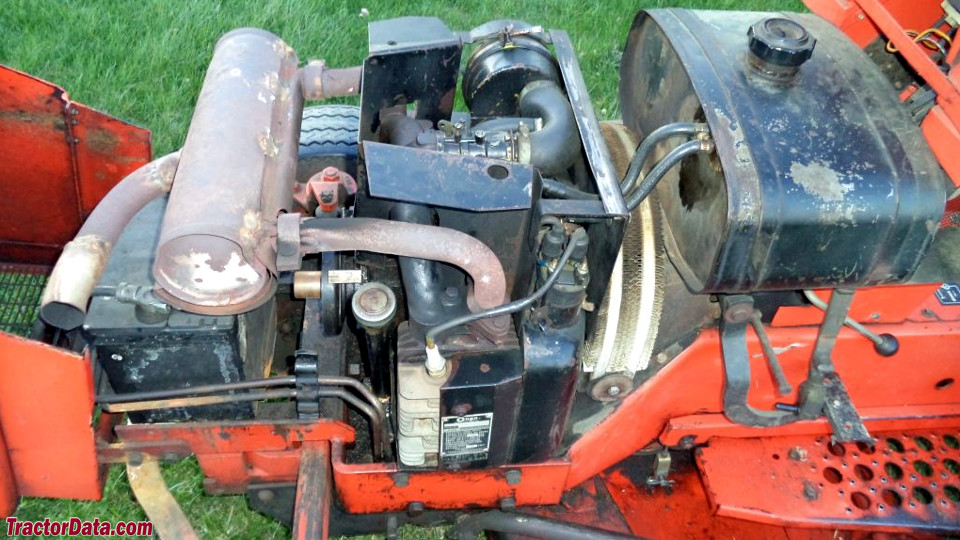

Allis Chalmers 720 Engine
Allis Chalmers 720 engine image
Image courtesy of Mike Meyer
