| | 2011 - 2013 |
| 2600 Series | | Lawn tractor | | Simplicity built |
|
Series map:
2622
2620
22.0hp
20.0hp
| Engine Detail |
| Briggs & Stratton |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 724 cc
44.18 ci
|
| Bore/Stroke | 3.12x2.89 inches
79 x 73 mm
|
| Power (gross) | 22 hp
16.4 kW
|
| Starter | electric
|
| Starter volts | 12
|

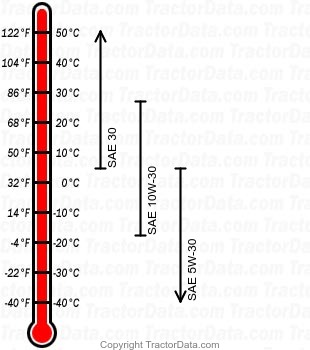

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 50 h
|
