Craftsman 917.27345 Transmission


Craftsman 917.27345 tractor photo
2003
DLT 3000 Series
Lawn tractor
AYP built
Series map:
917.27345
917.27346
25.0hp
25.0hp
Transmission
TransmissionPeerless 206-545C
Typebelt-driven gear
Gears6 forward and 1 reverse

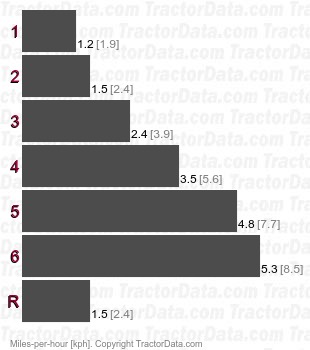

Speeds
917.27345 206-545C belt-driven gear speeds
