MTD 834
|
|
| Production | |
| Manufacturer | MTD |
| Garden tractor | |
| MTD 834 Engine | |
| 18HP Briggs & Stratton 693cc 2-cyl gasoline | |
| Fuel tank | 2.5 gal 9.5 L |
 Engine details ... | |
| MTD 834 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the MTD 834 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Tractor hitch | |
| Type | sleeve hitch OptOptional |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual idler pulley |
| Dimensions & Tires | |
| Front tire | 16.00x6.50 |
| Rear tire | 23.00x9.50 |
 Full dimensions and tires ... | |
| MTD 834 attachments | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| 834 Serial Numbers | |
| 1981 | 141-834A (model code) |
| 1982 | 142-8364 (model code) |
| 1983 | 143-834A (model code) |
| 1984 | 144-834-000 (model code) |
| 1985 | 145-834-000 (model code) |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

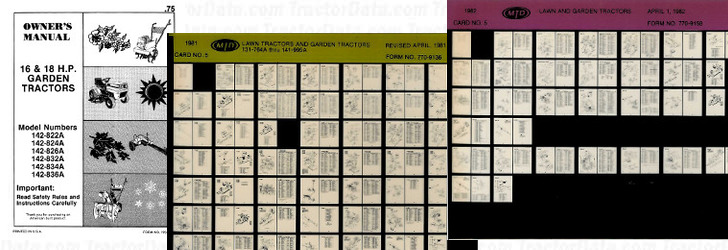

| Owner's Manual 142-822A, 142-824A, 142-826A, 142-832A, 142-834A, and 142-836A (770-1773) published in 1982 | |
| MTD Parts Microfiche (770-1155) published in 1981 | |
| MTD Parts Microfiche (770-2200) published in 1982 |
