MTD 796
|
|
| Production | |
| Manufacturer | MTD |
| Riding lawn mower | |
| Variants | |
| R-82 | similar White model |
| MTD 796 Engine | |
| 8HP Briggs & Stratton 318cc 1-cyl gasoline | |
 Engine details ... |
| MTD 796 Transmission | |
| 1-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station. |
| Photos | |
| No photos of the MTD 796 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Weight | 345 lbs 156 kg |
| Front tire | 11.00x4.00 |
| Rear tire | 14.50x4.50 |
 Full dimensions and tires ... | |
| MTD 796 attachments | |
| 30" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

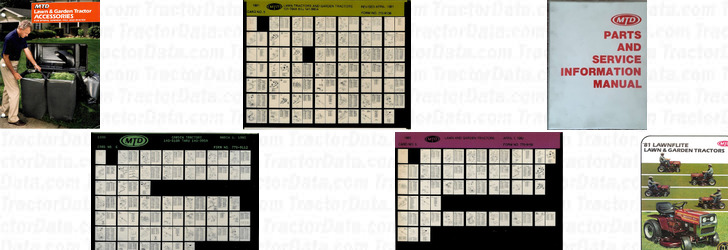

| References | |
 | |
| Lawn & Garden Tractor Accessories published in 1980, by MTD | |
| MTD Parts Microfiche (770-0273) published in 1980 | |
| MTD Parts Microfiche (770-1155) published in 1981 | |
| MTD Parts Microfiche (770-2200) published in 1982 | |
| Parts and Service Information Manual (770-1737) published in 1982 | |
| Lawn & Garden Tractors published in 1981, by MTD |
