Simplicity Broadmoor 16VH
|
|
| Production | |
| Manufacturer | Simplicity |
| Lawn tractor | |
| Variants | |
| 1616H | similar AGCO model |
| Simplicity Broadmoor 16VH Engines | |
| 16HP Vanguard 480cc 2-cyl gasoline | |
| 16HP Briggs & Stratton 655cc 2-cyl gasoline | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the Simplicity Broadmoor 16VH are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Wheelbase | 50.75 inches 128 cm |
| Weight | 424 lbs 192 kg |
| Front tire | 15x6.0-6 |
| Rear tire | 20x8.0-8 |
 Full dimensions and tires ... | |
| Simplicity Broadmoor 16VH attachments | |
| 38" mid-mount mower deck | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

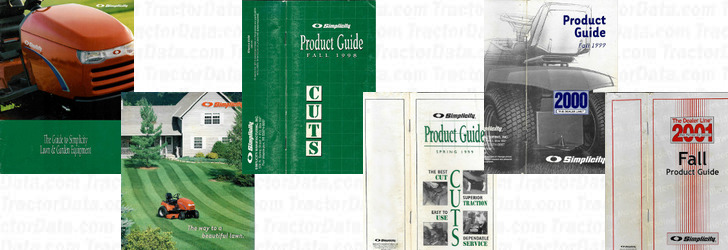

| Lawn & Garden Equipment published in 1998, by Simplicity | |
| The way to a beautiful lawn. published in 2000, by Simplicity | |
| Product Guide Fall 1998 published by Simplicity | |
| Product Guide Spring 1999 published by Simplicity | |
| Product Guide 2000 published by Simplicity | |
| Product Guide Fall 2001 published by Simplicity | |
 | |

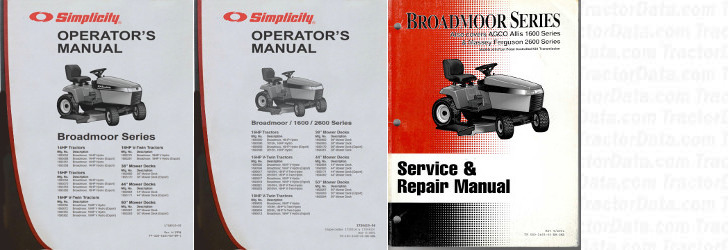

| Operator's Manual Broadmoor published in 1998 | |
| Operator's Manual Broadmoor published in 2001 | |
| Service & Repair Manual Broadmoor Series (TP 500-2493-00-BM-SMA) published in 2001 |
