| | 1974 - 1975 |
| 3400 Series | | Garden tractor |
|
| Engine Detail |
| Briggs & Stratton 302431 |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 494 cc
30.16 ci
|
| Bore/Stroke | 3.25x3.4375 inches
83 x 87 mm
|
| Power | 13 hp
9.7 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion J-8
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

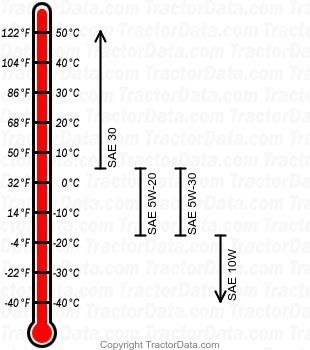

| Engine Oil |
|
| Oil change | 25 h
|
