| | 1992 - 1998 |
| 1700 Series | | Garden tractor | | Simplicity built |
|
Series map:
1714
1716
1717
14.0hp
16.0hp
17.0hp
Note: the AGCO model 1716 is the same as the Simplicity Landlord 16. The following data is from the Landlord 16 listing. |
| Transmission options |
| hydrostatic |
| 6-speed gear |
| Transmission |
| Transmission | Tuff Torq K215-A
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 2.8 qts
2.6 L
|

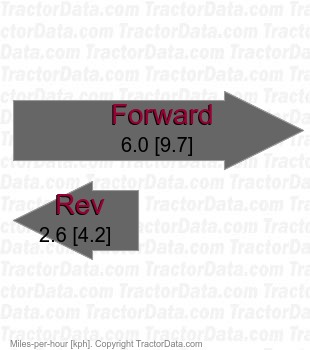

| Speeds |
|
| Transmission |
| Transmission | Tuff Torq K210-A
|
| Type | belt-driven gear
|
| Gears | 6 forward and 1 reverse
|
| Oil capacity | 3.875 qts
3.7 L
|
| The Landlord 16G became available in 1994 when it replaced the 14G. |

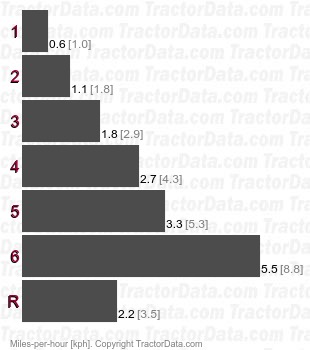

| Speeds |
|
