AGCO 1920H Transmission


AGCO 1920H tractor photo
1994 - 1997
1900 Series
Garden tractor
Simplicity built
Series map:
1918H
1920H
18.0hp
20.0hp

Note: the AGCO model 1920H is the same as the Simplicity SunStar 20. The following data is from the SunStar 20 listing.
Transmission
TransmissionSunstrand 15
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
ATF F
Peerless 2600 transaxle.

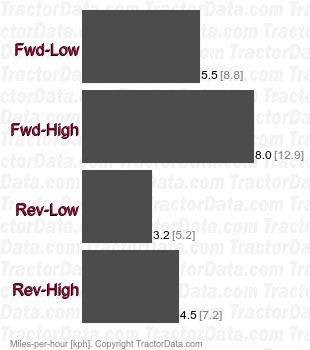

Speeds
1920H 15 shaft-driven hydrostatic speeds
AGCO 1920H Transmission
AGCO 1920H transmission image
