AGCO 2025H Transmission


AGCO 2025H tractor photo
1999 - 2003
2000 Series
Garden tractor
Simplicity built
Series map:
2024D
2025H
24.5hp
25.0hp

Note: the AGCO model 2025H is the same as the Simplicity Legacy 25. The following data is from the Legacy 25 listing.
Transmission
TransmissionSundstrand 15U
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
ATF F
Oil change400 h
Sundstrand 15 hydrostatic with Peerless 2600 transaxle.

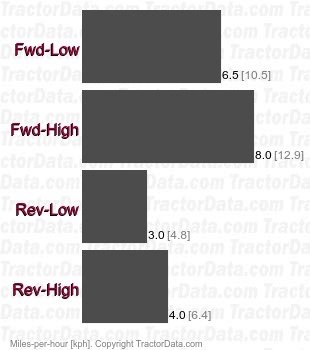

Speeds
2025H 15U shaft-driven hydrostatic speeds
