John Deere X370 Engine


John Deere X370 tractor photo
2016 - 2025
Model year
X300 Series
Lawn tractor
Series map:
X354
X370
X380
21.5hp
21.5hp
23.0hp
Engine Detail
Kawasaki FR651V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement726 cc
44.3 ci
Bore/Stroke3.07x2.99 inches
78 x 76 mm
Power (gross)21.5 hp
16.0 kW
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.004 inches (cold)
0.102 mm
Exhaust valve clearance0.004 inches (cold)
0.102 mm
Engine Oil

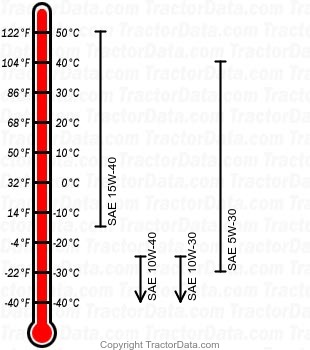

X370 gasoline engine oil chart
Oil capacity2.2 qts
2.1 L
Oil change100 h
John Deere X370 Engine

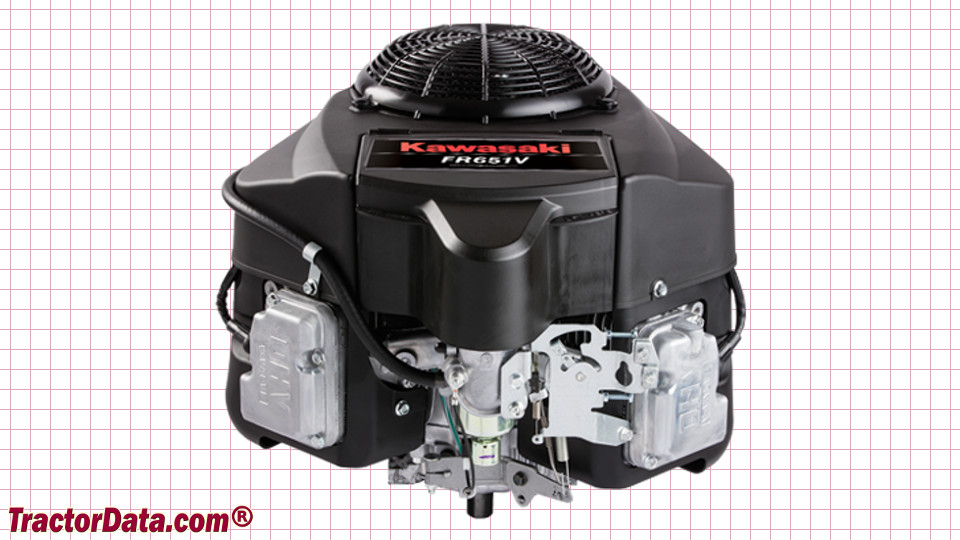

John Deere X370 engine image
