John Deere S180


John Deere S180 tractor photo
2021 -
S100 Series
Lawn tractor
Series map:
S170
S180
24.0hp
24.0hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $2,899 in 2021
John Deere S180 Engine
24HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank2.4 gal
9.1 L
Engine details ...
Mechanical
Two-wheel drive
Open operator station.
Photos
No photos of the John Deere S180 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Mid PTO Typepulley
Dimensions & Tires
Weight530 lbs
240 kg
Front tire15x6.5-8
Rear tire22x9.5-12
Full dimensions and tires ...
John Deere S180 attachments
54" mid-mount mower deck
snowblower
blade
Attachment details ...
S180 Serial Numbers
Location:Serial number decal above the left rear tire, below the fender deck.
Electrical
Groundnegative
Charging amps14
Battery volts12
Battery GroupU1
References

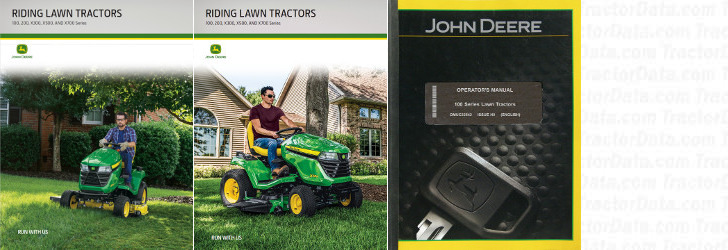

S180 references literature
Riding Lawn Tractors published in 2021, by John Deere
Riding Lawn Tractors published in 2022, by John Deere
Operator's Manual 100 Series Lawn Tractors (OMUC22642) published in 2020
