| | 2021 - |
| S100 Series | | Lawn tractor |
|
Series map:
S160
S170
S180
24.0hp
24.0hp
24.0hp
| Engine Detail |
| Briggs & Stratton 44U877 |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 724 cc
44.2 ci
|
| Bore/Stroke | 3.12x2.89 inches
79 x 73 mm
|
| Power (gross) | 24 hp
17.9 kW
|
| Air cleaner | dry
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

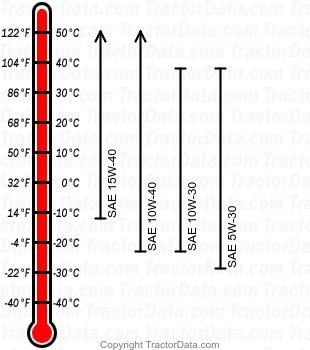

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 50 h
|

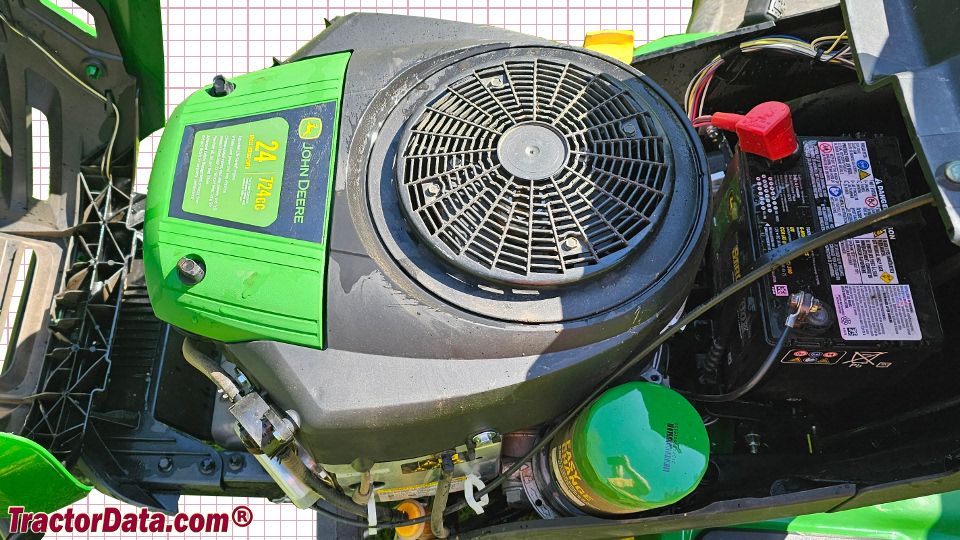

| John Deere S170 Engine |
 |
| Image courtesy of Matthew Klingler |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on April 24, 2024 |
