John Deere F725 Engine


John Deere F725 tractor photo
1991 - 2006
F700 Series
Front-mount mower
Series map:
F710
F725
F735
17.5hp
20.0hp
20.5hp
Engine Detail
Kawasaki FD590V
gasoline
2-cylinder
liquid-cooled vertical-shaft V-Twin
Displacement585 cc
35.7 ci
Bore/Stroke2.90x2.68 inches
74 x 68 mm
Power20 hp
14.9 kW
Air cleanerdry
Starterelectric
Starter volts12
Oil capacity2.0 qts*Late editions of the manual list 2.2 quarts.
1.9 L
Coolant capacity3.3 qts
3.1 L

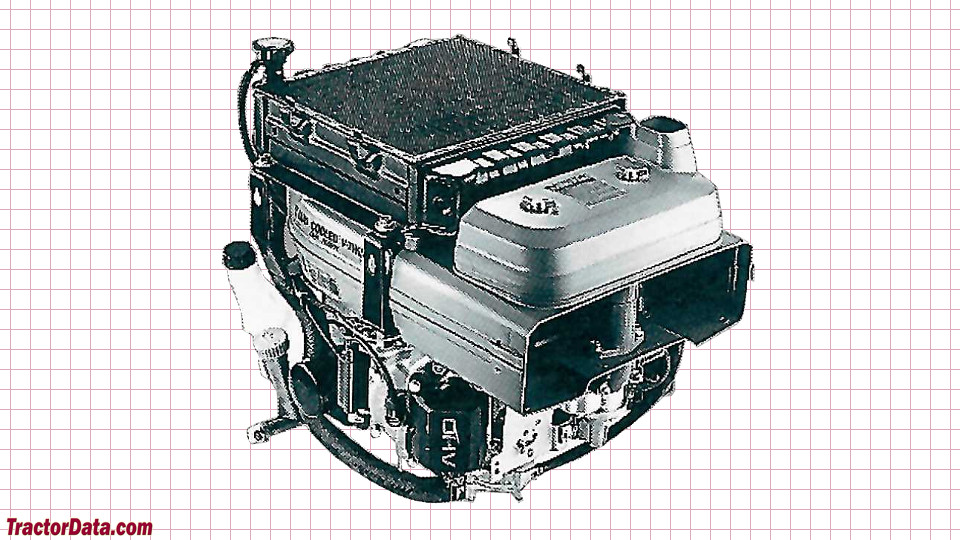

John Deere F725 Engine
John Deere F725 engine image
