| | 1991 - 1997 |
| F700 Series | | Front-mount mower |
|
Series map:
F710
F725
17.5hp
20.0hp
| Engine Detail |
| Kawasaki FC540V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 534 cc
32.6 ci
|
| Bore/Stroke | 3.50x3.38 inches
89 x 86 mm
|
| Power | 17.5 hp
13.0 kW
|
| Air cleaner | dry
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 1.7 qts
1.6 L
|

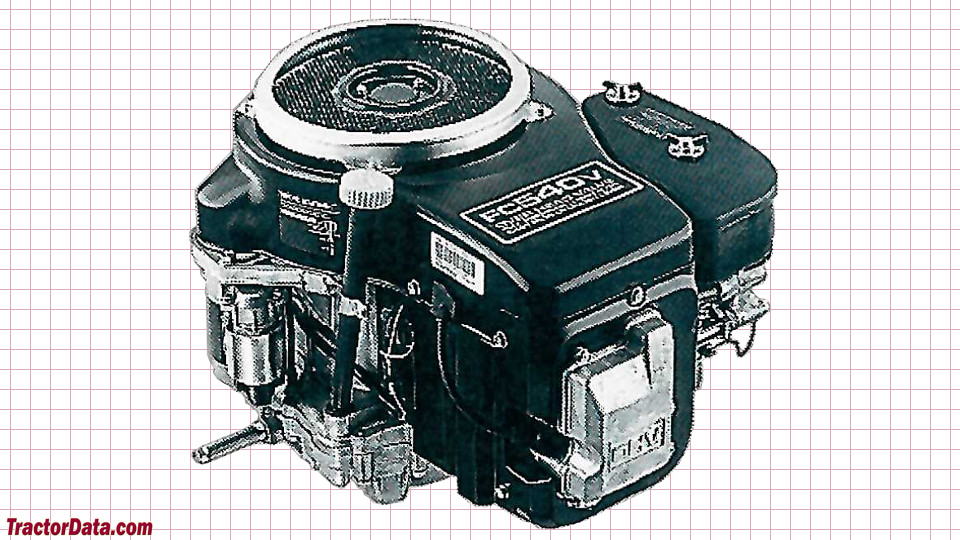

| John Deere F710 Engine |
 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 26, 2022 |
