John Deere F687


John Deere F687 tractor photo
2002 - 2006
F600 Series
Front-mount mower
Series map:
F687
23.0hp
Production
ManufacturerJohn Deere
Front-mount mower
Built in Fuquay-Varina, North Carolina, USA
Original price$9,149 (2003 48 )
$9,299 (2003 54 )
$9,554 (2003 60 )
John Deere F687 Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank6.8 gal
25.7 L
Engine details ...
Mechanical
Drive3x2 2WD
 4x2 2WD
Power steering
Open operator station.
Photos
No photos of the John Deere F687 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Weight1070 lbs
485 kg
Front tire20x10-10
Rear tire13x6.5-6
Full dimensions and tires ...
John Deere F687 attachments
48" front-mount mower deck
54" front-mount mower deck
60" front-mount mower deck
Attachment details ...
F687 Serial Numbers
Location:Serial number decal on the left side of the F687 frame, ahead of the rear axle.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps25
Battery CCA340
Battery volts12
References

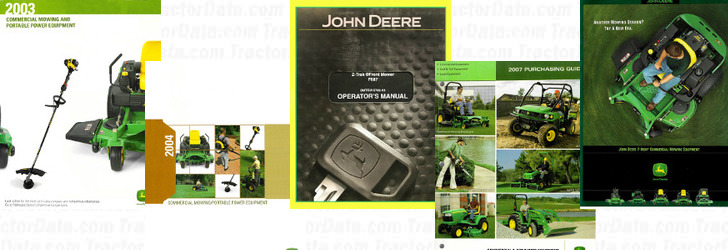

F687 references literature
Commercial Mowing and Portable Power Equipment published in 2003, by John Deere
Commercial Mowing and Portable Power Equipment published in 2004, by John Deere
Operator's Manual ZTRAK Front Mower F687 (OMTCU15769)
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
7-Iron Commercial Mowing Equipment published in 2002, by John Deere
