Lawn Tractors > Craftsman > 917.25658

Craftsman 917.25658 Engine



Craftsman 917.25658 tractor photo
1996
Lawn tractor
AYP built
Engine Detail
Kohler CV15S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement426 cc
26 ci
Bore/Stroke3.55x2.64 inches
90 x 67 mm
Power15.5 hp
11.6 kW
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

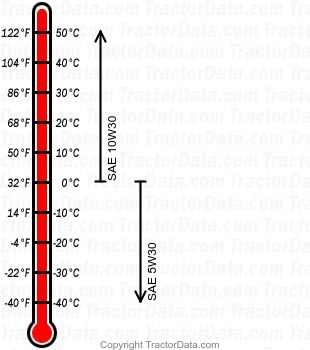

917.25658 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
