Wheel Horse 112-6 Engine
|
|
| Engine options | |
| 9.3KW Kawasaki 460cc 1-cyl gasoline | |
| 9.3KW Briggs & Stratton 465cc 1-cyl gasoline |
| Engine Detail | |
| Kawasaki FB460V | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| The Kawasaki engine was used only during the 1988 and 1989 model years on the Wheel Horse 112-6. | |
| Displacement | 460 cc 28.07 ci |
| Bore/Stroke | 3.50x2.91 inches 89 x 74 mm |
| Power | 12.5 hp 9.3 kW |
| Starter | electric |
| Starter volts | 12 |
| Engine Detail | |
| Briggs & Stratton 286707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| The Briggs engine was used on the 112-6 beginning with the 1990 model year. The 281707 in 1990, and a 286707 in 1991-1992. | |
| Displacement | 465 cc 28.4 ci |
| Bore/Stroke | 3.44x3.06 inches 87 x 78 mm |
| Power | 12.5 hp 9.3 kW |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |

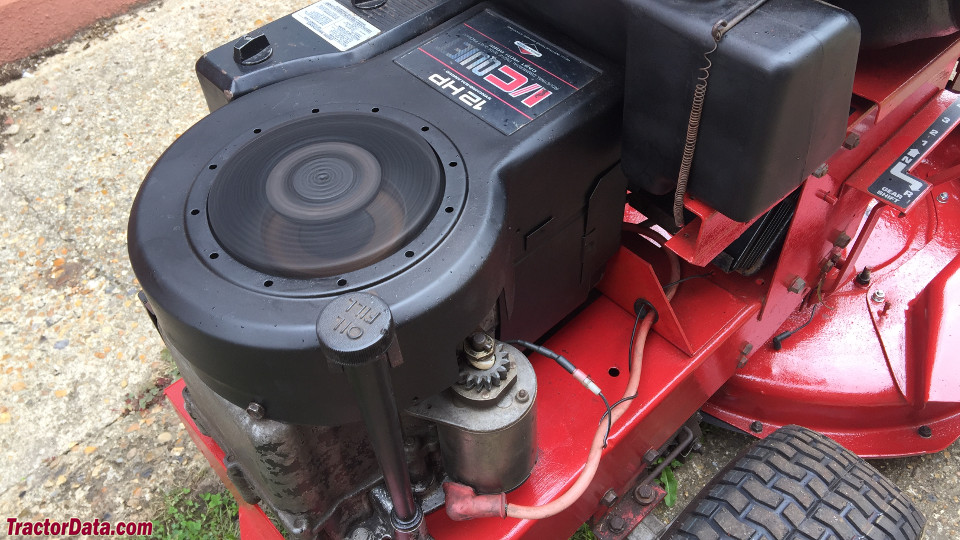

| Wheel Horse 112-6 Engine | |
 | |
| Image courtesy of Sorin Lungoci |
