Ariens RM828 Engine
|
|
| Engine options | |
| 8HP Tecumseh 305cc 1-cyl gasoline | |
| 8HP Tecumseh 318cc 1-cyl gasoline | |
| 8HP Kawasaki 286cc 1-cyl gasoline | |
| 8HP Briggs & Stratton 318cc 1-cyl gasoline |
| Engine Detail | |
| Tecumseh VM80 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 305 cc 18.65 ci |
| Bore/Stroke | 3.0625x2.513 inches 78 x 64 mm |
| Power (gross) | 8 hp 6.0 kW |
| Starter type | manual recoil |
| Engine Detail | |
| Tecumseh TVM195 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| The TVM195 was used from 1982 to 1989. The TVXL195 was used from 1990 to 1994. | |
| Displacement | 318 cc 19.43 ci |
| Bore/Stroke | 3.125x2.561 inches 79 x 65 mm |
| Power (gross) | 8 hp 6.0 kW |
| Starter | manual recoil |
| electric OptOptional | |
| Starter volts | 12 |
| Engine Detail | |
| Kawasaki FC290V | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 286 cc 17.5 ci |
| Bore/Stroke | 3.07x2.36 inches 78 x 60 mm |
| Power (gross) | 8 hp 6.0 kW |
| Starter type | electric |
| Engine Detail | |
| Briggs & Stratton 195707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 318 cc 19.44 ci |
| Bore/Stroke | 3.00x2.75 inches 76 x 70 mm |
| Power (gross) | 8 hp 6.0 kW |
| Starter | electric |
| Starter volts | 12 |

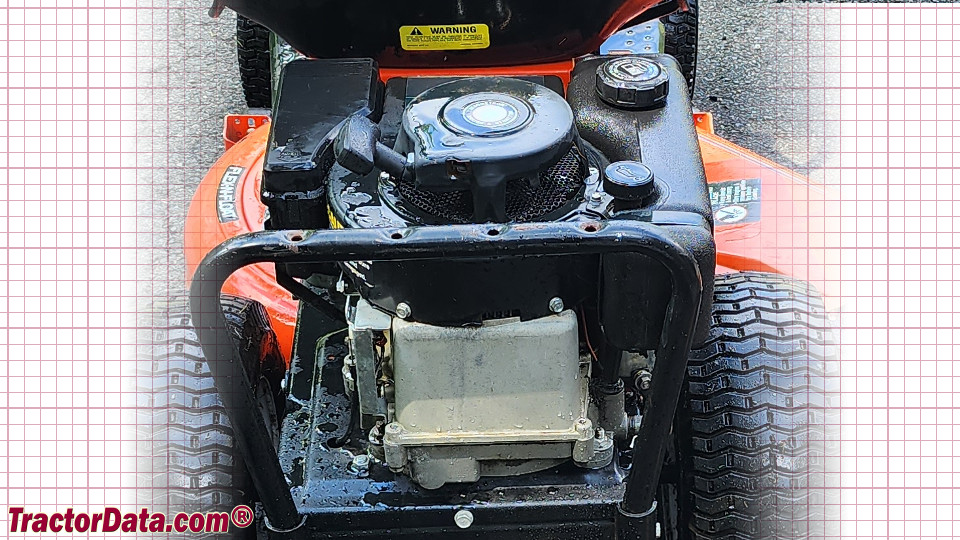

| Ariens RM828 Engine | |
 | |
| Image courtesy of Bryan Reilly |
