| | 1989 |
| Riding lawn mower | | Murray built |
|
| Engine Detail |
| Tecumseh TVM220 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 357 cc
21.82 ci
|
| Bore/Stroke | 3.312x2.532 inches
84 x 64 mm
|
| Power (gross) | 10 hp
7.5 kW
|
| Starter | electric
|
| Starter volts | 12
|

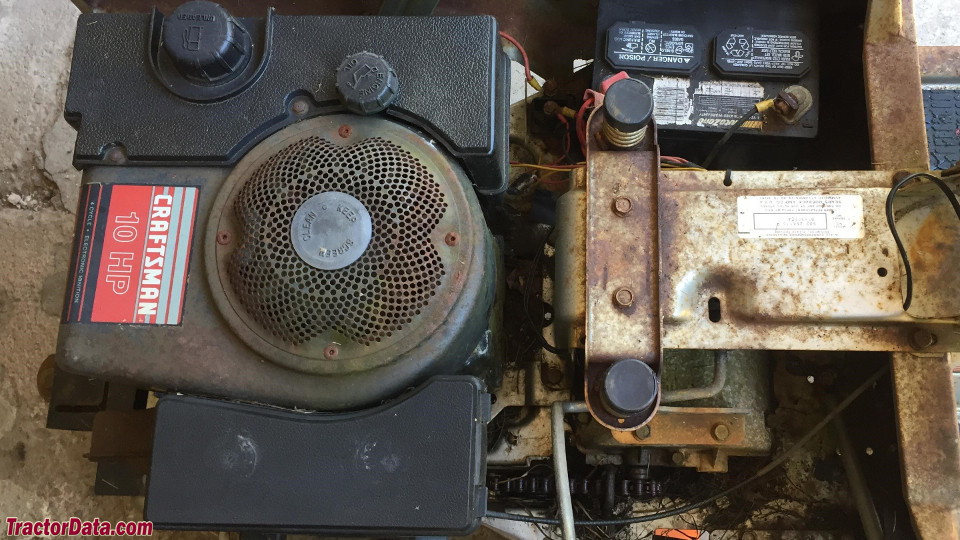

| Craftsman 502.25417 Engine |
 |
| Image courtesy of Todd Matthews |
