Lawn Tractors > Honda > H1011

Honda H1011 Engine



No photo available
1993 - 2000
Riding lawn mower
Series map:
H1011
11.0hp
Engine Detail
Honda GXV340K1
gasoline
1-cylinder
air-cooled
Displacement337 cc
20.6 ci
Bore/Stroke3.23x2.52 inches
82 x 64 mm
Power11 hp
8.2 kW
Compression7.7:1
Startermanual recoil
 electric OptOptional
Starter volts12
SparkplugNGK BPR5ES
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

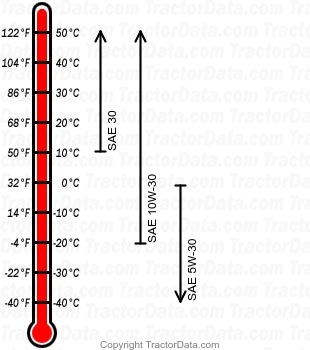

H1011 gasoline engine oil chart
Oil capacity1.2 qts
1.1 L
Oil change100 h
