| | 1989 - 1992 |
| Riding lawn mower |
|
Series map:
H3011
H3013
11.0hp
13.0hp
| Engine Detail |
| Honda GXV390 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 388 cc
23.7 ci
|
| Bore/Stroke | 3.46x2.52 inches
88 x 64 mm
|
| Power | 13 hp
9.7 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | NGK BPR5ES
|

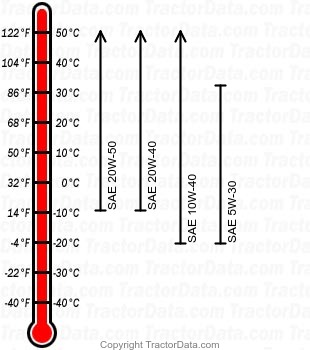

| Engine Oil |
|
| Oil capacity | 1.2 qts
1.1 L
|
| Oil change | 100 h
|
