Lawn Tractors > Honda > HT-R3009

Honda HT-R3009 Engine



Honda HT-R3009 tractor photo
1985 - 1988
Riding lawn mower
Series map:
HT-R3009
HT-R3811
8.5hp
11.0hp
Engine Detail
Honda GXV270
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement270 cc
16.5 ci
Bore/Stroke3.03x2.28 inches
77 x 58 mm
Power8.5 hp
6.3 kW
Starterelectric
Starter volts12
SparkplugNGK BPR5ES
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

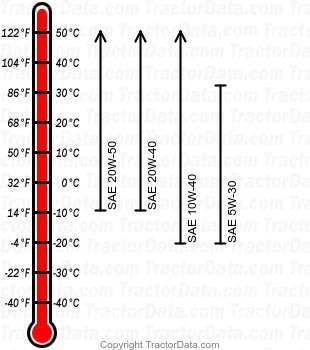

HT-R3009 gasoline engine oil chart
Oil capacity1.2 qts
1.1 L
Oil change100 h
