Lawn Tractors > Toro > Wheel Horse 314-H

Toro Wheel Horse 314-H Engine



Toro Wheel Horse 314-H tractor photo
1993 - 1997
Classic 300 Series
Garden tractor
Engine Detail
Kohler M14S
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power (gross)14 hp
10.4 kW
Starterelectric
Starter volts12
SparkplugChampion RH-10
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

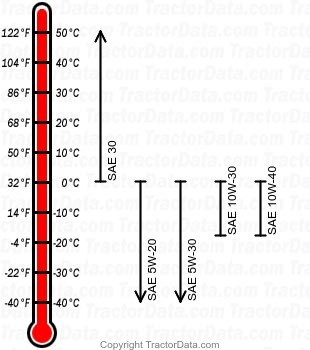

Wheel Horse 314-H gasoline engine oil chart
Oil capacity2.0 qts*Early editions of the manual state 2.5 US quarts, later editions state 2.0.
1.9 L
Oil change25 h
