Craftsman 917.25051
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | AYP |
| Garden tractor | |
| Original price was $2,699 in 1995 | |
| Craftsman 917.25051 Engine | |
| 19.5HP Kohler 770cc 2-cyl gasoline | |
| Fuel tank | 3.5 gal 13.2 L |
 Engine details ... | |
| Craftsman 917.25051 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Dimensions & Tires | |
| Front tire | 16x6.5-8 |
| Rear tire | 23x10.5-12 |
 Full dimensions and tires ... | |
| Craftsman 917.25051 attachments | |
| 46" mid-mount mower deck | |
 Attachment details ... |

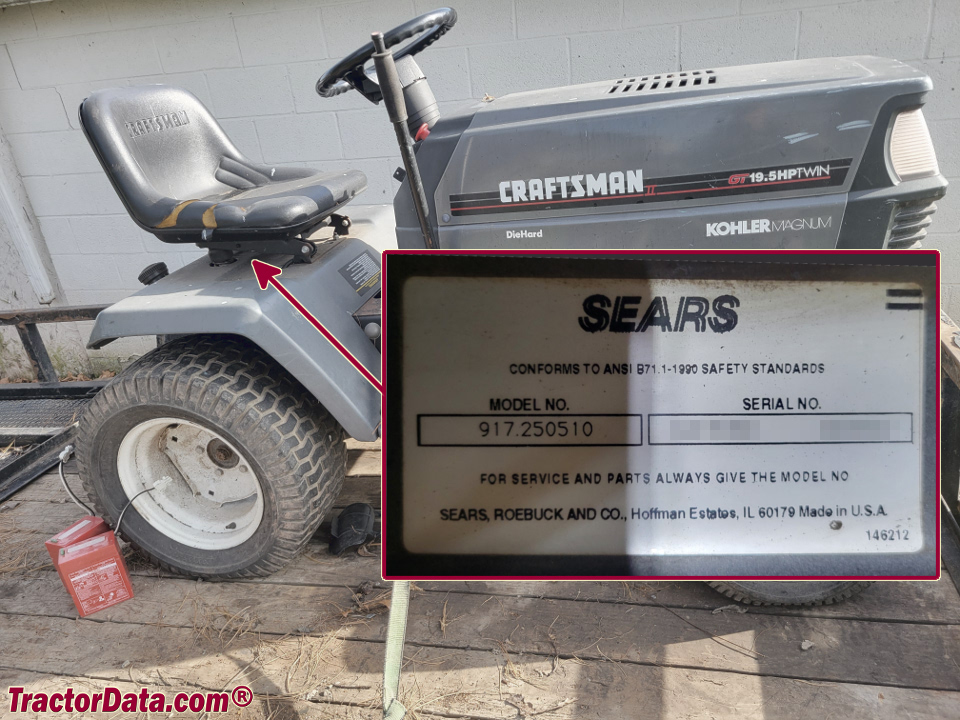

| 917.25051 Serial Number Location | |
 | |
| Serial number decal on the rear fender deck, below the seat. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
