Craftsman 917.25486
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | AYP |
| Lawn tractor | |
| Original price was $1,599 in 1993 | |
| Craftsman 917.25486 Engine | |
| 18HP Briggs & Stratton 693cc 2-cyl gasoline | |
| Fuel tank | 3.5 gal 13.2 L |
 Engine details ... | |
| Craftsman 917.25486 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual idler pulley |
| Dimensions & Tires | |
| Weight | 524 lbs 237 kg |
| Front tire | 15x6.0-6 |
| Rear tire | 20x10-8.5 |
 Full dimensions and tires ... | |
| Craftsman 917.25486 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging amps | 3 (battery) |
| 5 (lights) | |
| Battery volts | 12 |

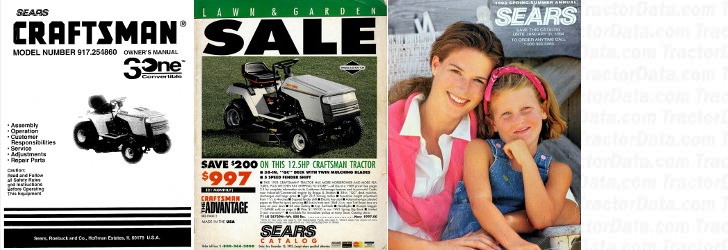

| References | |
 | |
| Owner's Manual Model Number 917.254860 (138476) published in 1993 | |
| Lawn & Garden Catalog published in 1993, by Sears | |
| 1993 Spring/Summer Annual published by Sears |
