Lawn Tractors > John Deere > 112

John Deere 112



John Deere 112 tractor photo
1966 - 1974
Model year
100 Series
Garden tractor
Series map:
110
112
120
8.0hp
10.0hp
12.0hp
Production
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $1,475 in 1974
The John Deere 112 had a distinctive change in style for the 1968 model year when the round rear fenders of the early years were replaced with a square fender deck.
Variants
112Hhydraulic lift
John Deere 112 Engines
10HP Tecumseh 388cc 1-cyl gasoline
10HP Kohler 390cc 1-cyl gasoline
12HP Kohler 476cc 1-cyl gasoline
Fuel tank1.9 gal
7.2 L
Engine details ...
John Deere 112 Transmission
4-speed gear with variable pulley drive
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.

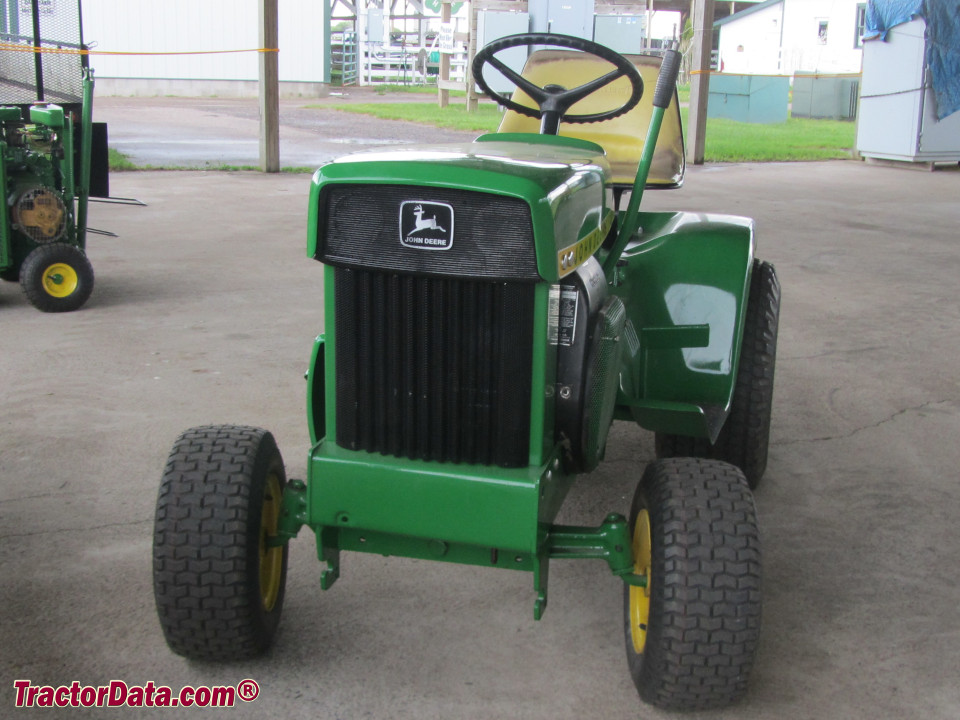

Photos
1972 (square-fender) John Deere model 112
John Deere 112 photos...
Hydraulics
Type0.25
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase44 inches
111 cm
Weight635 lbs
288 kg
Front tire16x6.50-8
Rear tire8-12
Full dimensions and tires ...
John Deere 112 attachments
38" mid-mount mower deck
46" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...

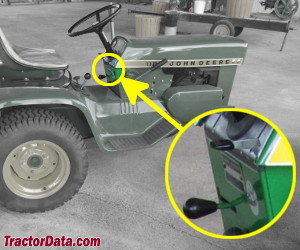

112 Serial Number Location
John Deere 112 serial number location
Serial number plate located below steering column.
112 Serial Numbers
19662551
19673551
1968100001
1969130001
1970160000
1971185001
1972250001
1973260001
1974300001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
112 references literature
John Deere Lawn & Garden Tractors and Equipment published in 1968
Lawn and Garden Equipment published in 1970, by John Deere
Lawn and Garden Tractors and Riding Mowers published in 1973, by John Deere
Loaders for John Deere Lawn & Garden Tractors published in 1970, by Johnson
Loaders for John Deere Lawn & Garden Tractors published in 1971, by Johnson
112 manuals literature
Operator's Manual 110 and 112 (OM-M43692) published in 1969
John Deere 112 (OM-M44120)
Service Manual 110 and 112 Lawn and Garden Tractors Serial No. (100,001-250,000) (SM-2088) published in 1969
Operator's Manual 31 Integral Rotary Tiller (OMM49210)
Operator's Manual 37A Snowthrower (OMM89616)
Operator's Manual 39 and 47 Rotary Mowers (OMM48953)
Operator's Manual 43C and 54C Center Blade (OMM45478) published in 1970
