Bolens 3114H ST140

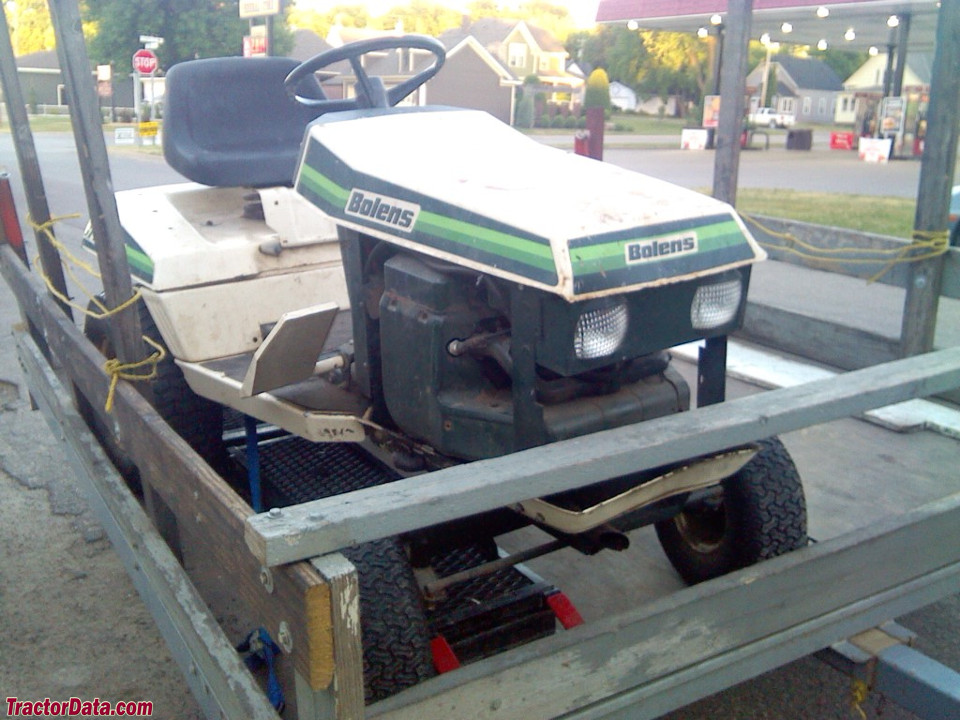

Bolens 3114H ST140 tractor photo
1988 - 1989
Suburban Series
Garden tractor
Series map:
3114H
14.0hp
Production
ManufacturerBolens
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
3114Ggear
3114Hhydrostatic
Bolens 3114H Engine
14HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase45 inches
114 cm
Weight515 lbs
233 kg
Front tire15x6.00-6
Rear tire20x8.00-10
Full dimensions and tires ...
Bolens 3114H attachments
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
3114H Serial Numbers
Location:Serial number tag on the rear fender, under the tractor seat, on the left side.
Electrical
Groundnegative
Charging amps5
Battery volts12
Battery AH45
References
3114H ST140 references literature
Lawn & Garden published in 1988, by Bolens*
Lawn and Garden Power Products published in 1989, by Bolens
Eurotrac Lawn & Garden Tractors published in 1987, by Bolens
*Publication contains known errors.
