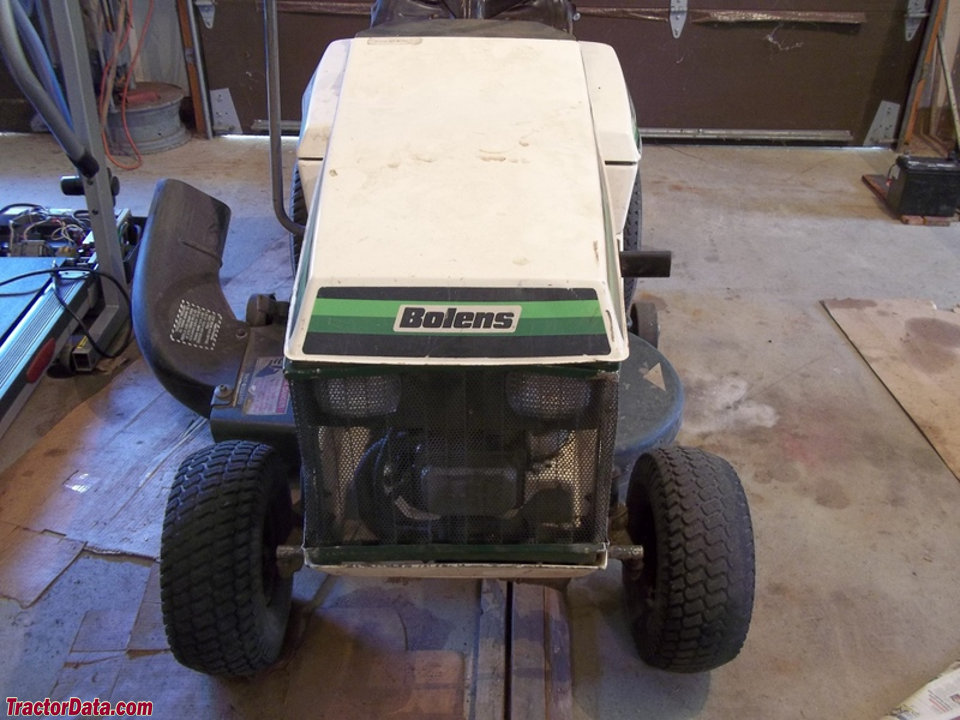

Bolens 3011G ST110
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Bolens 3011G Engine | |
| 11HP Briggs & Stratton 399cc 1-cyl gasoline | |
| Fuel tank | 5 gal 18.9 L |
 Engine details ... | |
| Bolens 3011G Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station. |
| Photos | |
 | |
 Bolens 3011G photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Dimensions & Tires | |
| Wheelbase | 45 inches 114 cm |
| Weight | 414 lbs 187 kg |
| Front tire | 15x6.00-6 |
| Rear tire | 20x8.00-10 |
 Full dimensions and tires ... | |
| Bolens 3011G attachments | |
| 36" mid-mount mower deck | |
| 42" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| 3011G Serial Numbers | |
| Location: | Serial number tag on the rear fender, under the tractor seat, on the left side. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 45 |
| References | |
 | |
| Suburban Tractors published in 1984, by Bolens |
