AMF 1010
|
|
| Production | |
| Manufacturer | AMF |
| Garden tractor | |
| Built in Des Moines, Iowa, USA | |
| Original price was $1,095 in 1971 | |
| AMF 1010 Engine | |
| 10HP Tecumseh 389cc 1-cyl gasoline | |
| Fuel tank | 1.75 gal 6.6 L |
 Engine details ... | |
| AMF 1010 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. |

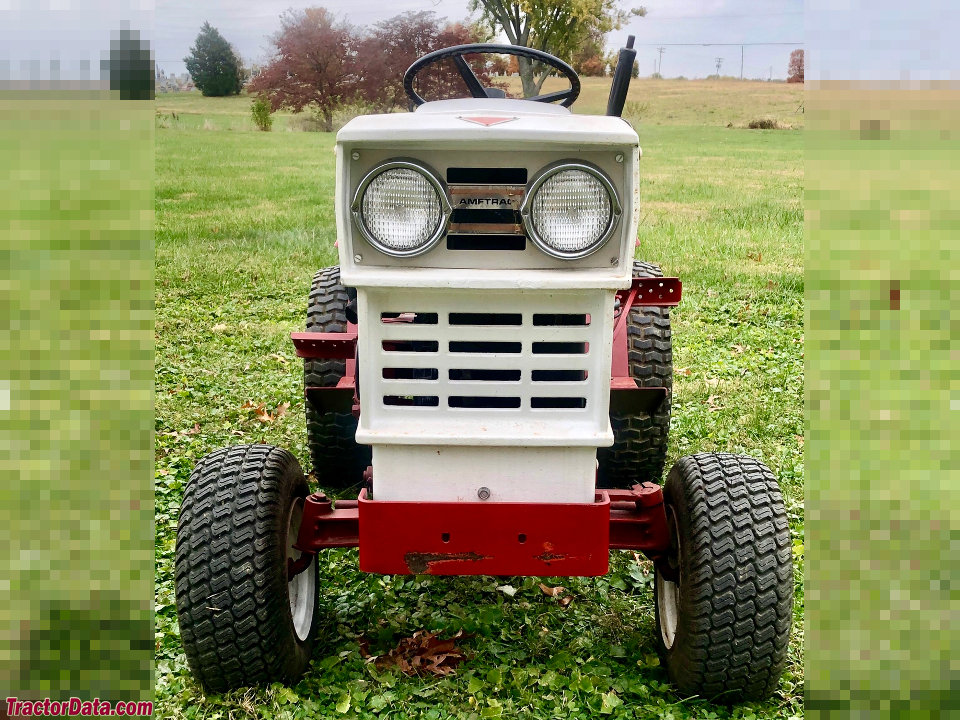

| Photos | |
 | |
 AMF 1010 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | mechanical |
| Dimensions & Tires | |
| Wheelbase | 44 inches 111 cm |
| Front tire | 6.50-8 |
| Rear tire | 8.50-12 |
 Full dimensions and tires ... | |
| AMF 1010 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |

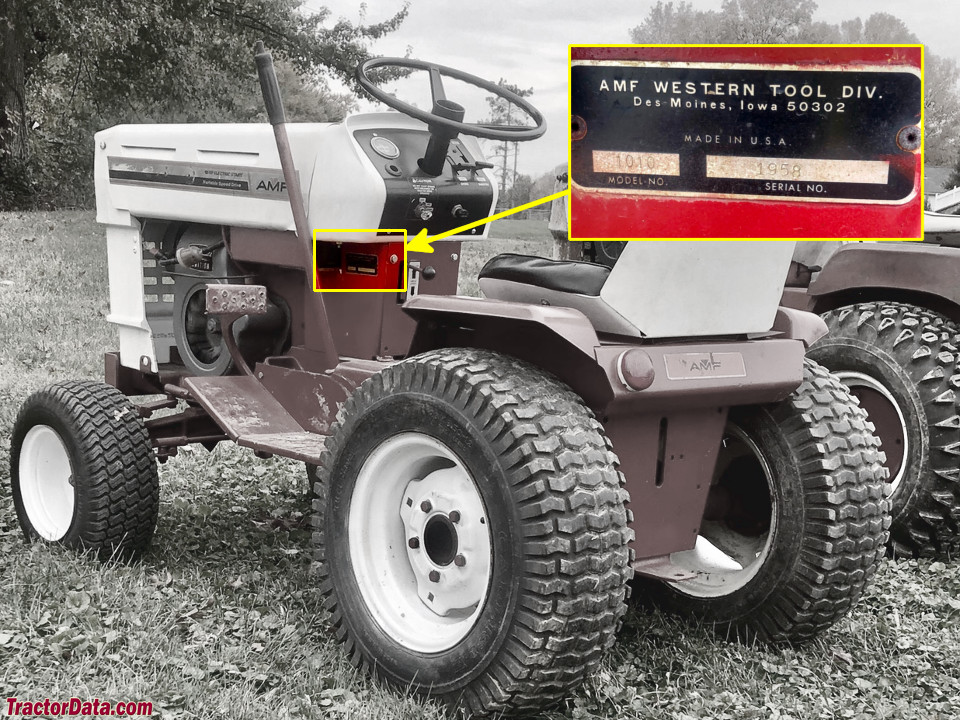

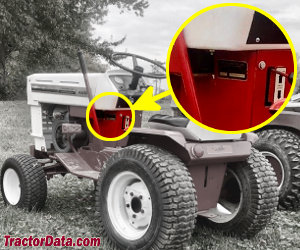

| 1010 Serial Number Location | |
 | |
| Serial number plate on the left side of the AMF 1010, below the hood near the attachment lift lever. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Owner's Manual Model 1010 Tractor (1448-176-M2) published in 1971 |
