Series map:
YT3600
YT5700
12.0hp
16.0hp
| Engine Detail |
| Yamaha |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 358 cc
21.9 ci
|
| Bore/Stroke | 3.23x2.68 inches
82 x 68 mm
|
| Power (gross) | 12 hp
8.9 kW
|
| Air cleaner | dry
|
| Compression | 8.5:1
|
| Torque | 17.4 lb-ft
23.6 Nm
|
| Torque RPM | 2500
|
| Starter | electric
|
| Starter volts | 12
|

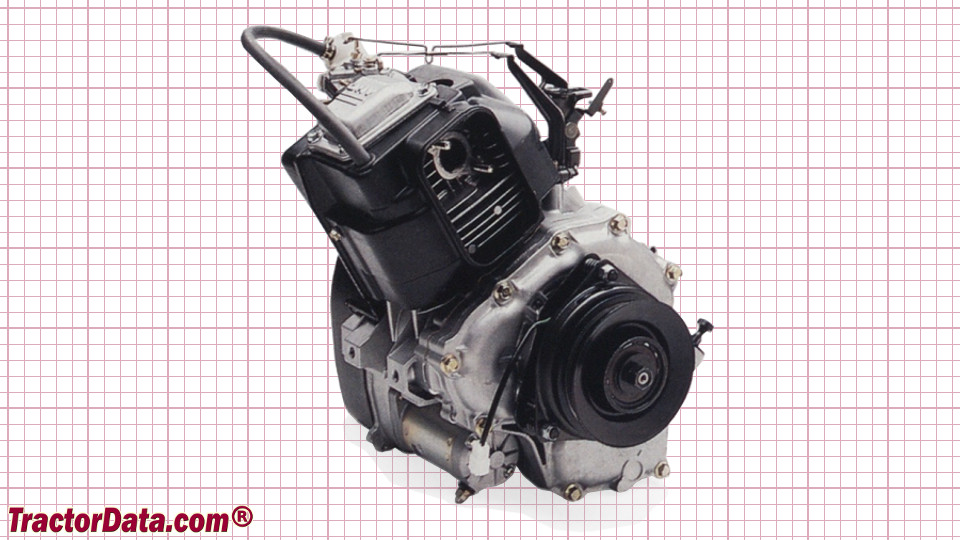

| Yamaha YT3600 Engine |
 |
