Cub Cadet 75 Engine


Cub Cadet 75 tractor photo
1971 - 1974
Riding lawn mower
Series map:
75
7.0hp
Engine Detail
Briggs & Stratton 170700
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement275 cc
16.79 ci
Bore/Stroke3.00x2.375 inches
76 x 60 mm
Power (gross)7 hp
5.2 kW
Air cleaneroiled foam
Starter typemanual recoil
 electric OptOptional
SparkplugChampion CJ-8
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.007 inches (cold)
0.178 mm
Exhaust valve clearance0.011 inches (cold)
0.279 mm
Engine Oil

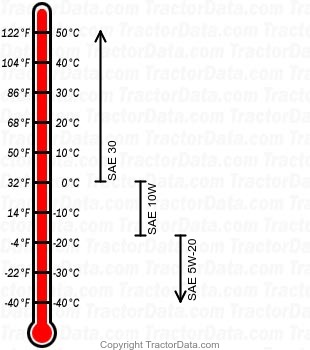

75 gasoline engine oil chart
Oil capacity1 qts
0.9 L
Oil change25 h
