Lawn Tractors > Bolens > 830

Bolens 830 Engine



Bolens 830 tractor photo
1979 - 1983
Riding lawn mower
Series map:
628
830
831
6.0hp
8.0hp
8.0hp
Engine Detail
Briggs & Stratton 190702
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement318 cc
19.44 ci
Bore/Stroke3.00x2.75 inches
76 x 70 mm
Power (gross)8 hp
6.0 kW
Rated RPM3600
Starter typemanual recoil
SparkplugChampion J-8
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Engine Oil

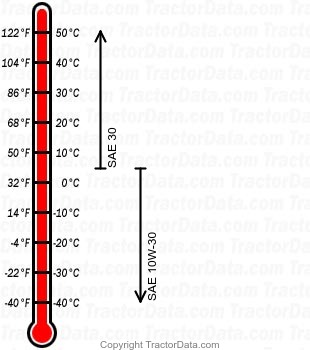

830 gasoline engine oil chart
Oil capacity1.125 qts
1.1 L
Oil change25 h
