Allis Chalmers 616 Special Engine


Allis Chalmers 616 Special tractor photo
1981 - 1983
600 Lawn Series
Lawn tractor
Simplicity built
Series map:
611 LTD
616 Special
11.0hp
16.0hp
Engine Detail
Briggs & Stratton 401707
gasoline
2-cylinder
air-cooled vertical-shaft horizontally-opposed
Displacement655 cc
40 ci
Bore/Stroke3.44x2.16 inches
87 x 55 mm
Power16 hp
11.9 kW
Rated RPM3600
Starterelectric
Starter volts12

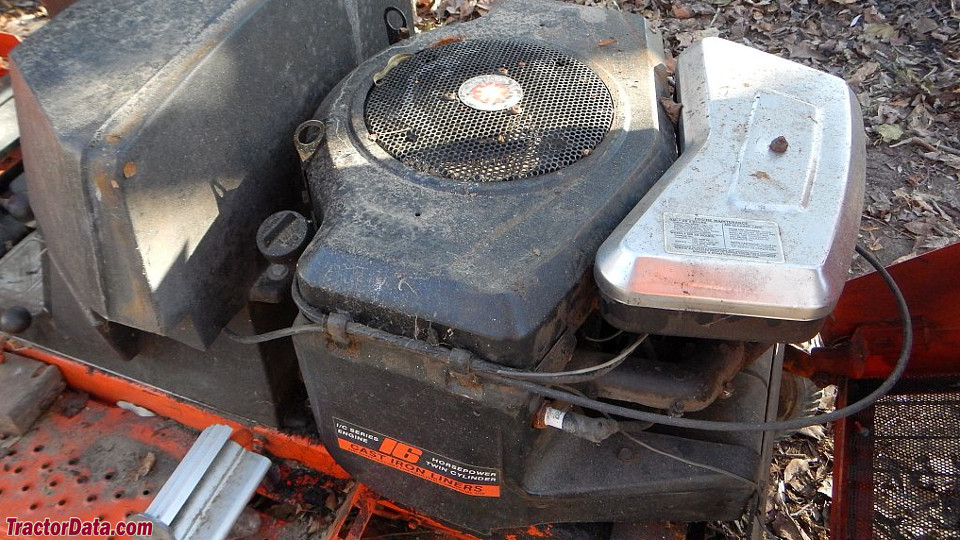

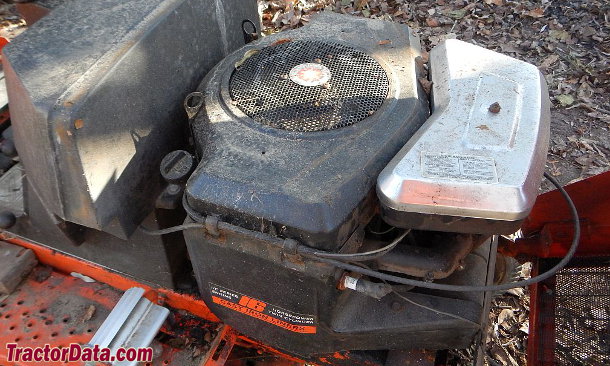

Allis Chalmers 616 Special Engine
Allis Chalmers 616 Special engine image
Image courtesy of Mark Salamack
