John Deere X354 Engine


John Deere X354 tractor photo
2016 - 2025
Model year
Select X300 Series
Lawn tractor
Series map:
X350
X354
X370
18.5hp
18.5hp
18.5hp
Engine Detail
Kawasaki FS600V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement603 cc
36.8 ci
Bore/Stroke2.87x2.84 inches
73 x 72 mm
Power (gross)18.5 hp
13.8 kW
Fuel systemcarburetor
Air cleanerdry with foam precleaner
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

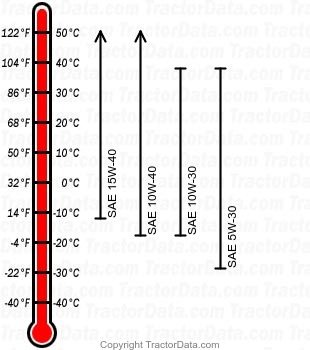

X354 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change100 h
