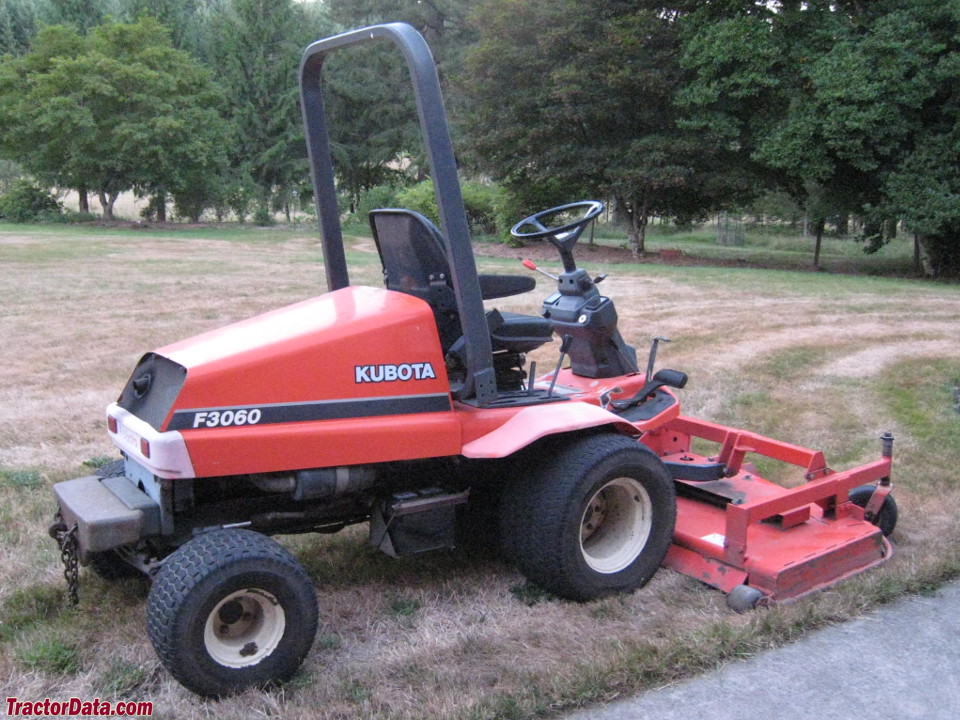

Kubota F3060
| | 1997 - 2005 |
| F60 Series | | Front-mount mower |
|
| Production |
| Manufacturer | Kubota
|
| Front-mount mower |
| Mechanical |
| Drive | 4x4 4WD
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS |
| Power Take-off (PTO) |
| Front PTO | independent
|
| Clutch | hydraulic wet disc
|
| Front PTO Type | Kubota 10-tooth
|
| F3060 Serial Number Location |
 |
| Serial number decal on the left side of the mower frame, ahead of the rear axle. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Battery AH | 70
|
| References |
 |
| Diesel Front Mower F2260/F2560E/F2560/F3060 published in 1996, by Kubota |
| F60 Series published in 1996, by Kubota |
| Operator's Manual F2260, F2560, F2560E, F3060, F3560 (K3513-6291-2) published in 1996 |
| Workshop Manual F2260, F2560(E), F3060, F3560 (9Y011-11903) published in 1996 |
| 1999 Products published by Kubota |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 17, 2024 |
