Bolens 1800H 5018H

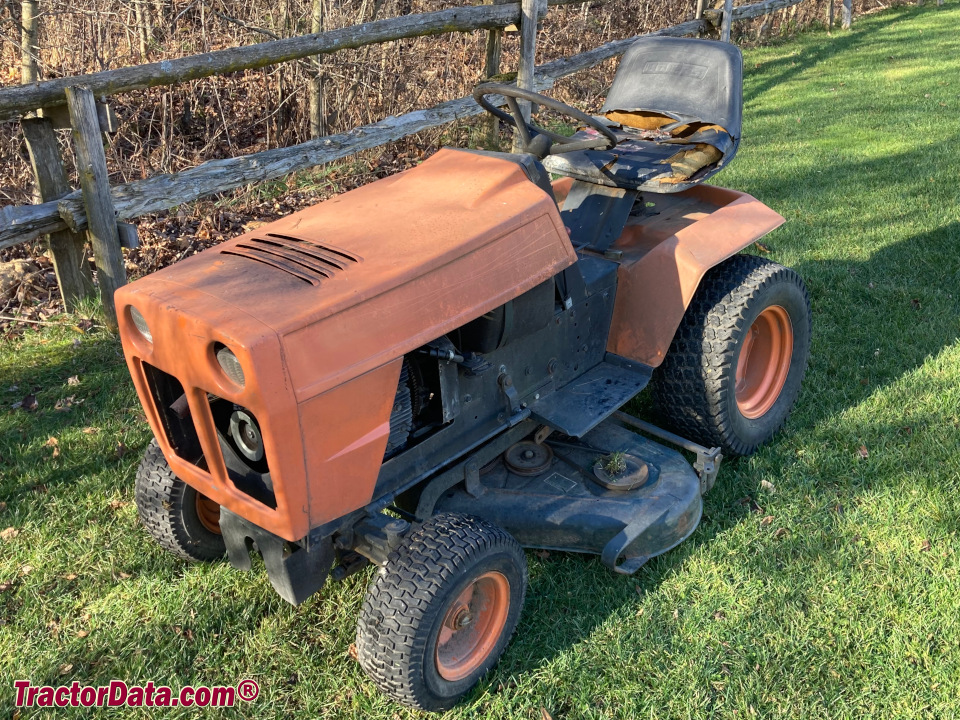

Bolens 1800H 5018H tractor photo
1986 - 1988
5000 Series
Garden tractor
Series map:
1700H
1800H
1900H
17.0hp
18.0hp
19.0hp
Production
ManufacturerBolens
Garden tractor
Bolens 1800H Engine
18HP Kohler 691cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station. Soft-side weather cab optional.
Photos
No photos of the Bolens 1800H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear Type0 OptOptional
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase47 inches
119 cm
Weight845 lbs
383 kg
Front tire16-6.50x8
Rear tire23x10.50-12
Full dimensions and tires ...
Bolens 1800H attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH45
References
1800H 5018H references literature
High Performance published in 1987, by Bolens
Lawn & Garden published in 1988, by Bolens*
*Publication contains known errors.
