Wheel Horse 211-5
|
|
| Production | |
| Manufacturer | Wheel Horse |
| Garden tractor | |
| Built in South Bend, Indiana, USA | |
| Wheel Horse 211-5 Engine | |
| 11HP Briggs & Stratton 399cc 1-cyl gasoline | |
| Fuel tank | 1.5 gal 5.7 L |
 Engine details ... | |
| Wheel Horse 211-5 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 Wheel Horse 211-5 photos... | |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Wheelbase | 45.5 inches 115 cm |
| Weight | 355 to 460 pounds |
| Front tire | 13x6.50-6 |
| Rear tire | 18x9.50-8 |
 Full dimensions and tires ... | |
| Wheel Horse 211-5 attachments | |
| 36" mid-mount mower deck | |
| 37" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

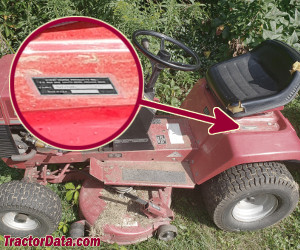

| 211-5 Serial Number Location | |
 | |
| Serial number decal on the top of the rear fender deck, to the left of the seat. Model codes shown. |
| 211-5 Serial Numbers | |
| 1985 | 22-11B501 |
| 1986 | 22-11B502 |
| 1987 | 32-11B501 |
| 1987 | 32-11BX01 |
| 1988 | 32-11BX02 |
| 1989 | 42-11B501 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Nothing Works Like A Horse published in 1985, by Wheel Horse | |
| Nothing works like a horse. Wheel Horse... of course! published in 1986 | |
| Wheel Horse Lawn & Garden Equipment published in 1986 | |
| Wheel Horse Lawn & Garden Equipment published in 1988 | |
| Wheel Horse Lawn & Garden Equipment published in 1989 | |
| Operators Manual 200 Series, 300 Series, 400 Series (810339R1) published in 1986 |
