Craftsman 917.25455
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | Roper |
| Lawn tractor | |
| Craftsman 917.25455 Engine | |
| 12HP 1-cyl gasoline | |
| Fuel tank | 1.25 gal 4.7 L |
 Engine details ... | |
| Craftsman 917.25455 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical disc brakes | |
| Open operator station. |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Weight | 460 lbs 208 kg |
| Front tire | 15x6.0 |
| Rear tire | 18x9.5 |
 Full dimensions and tires ... | |
| Craftsman 917.25455 attachments | |
| 38" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

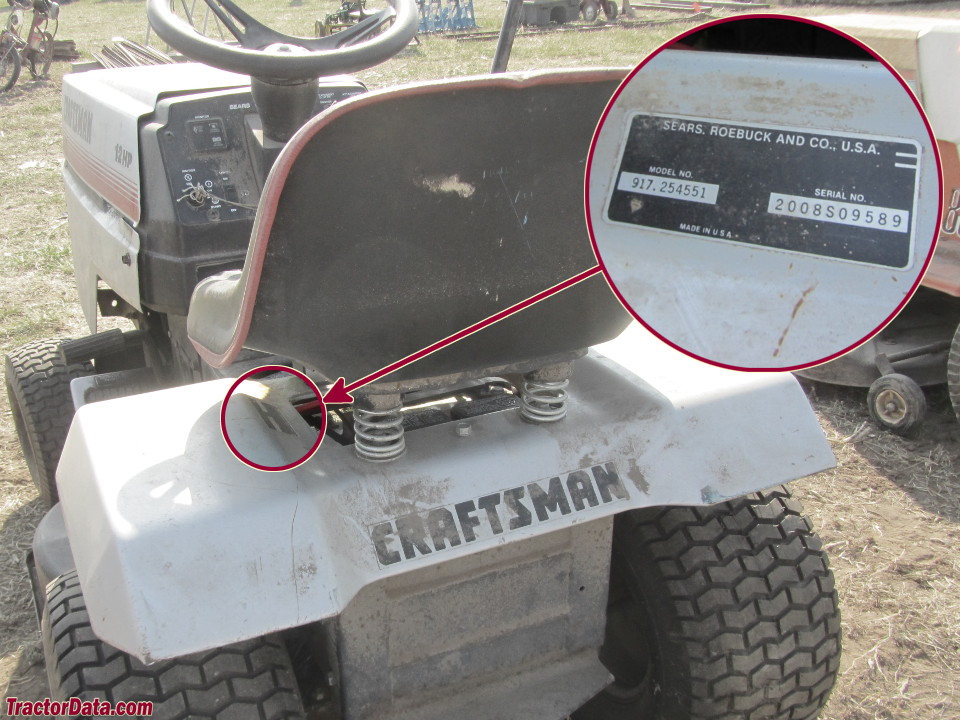

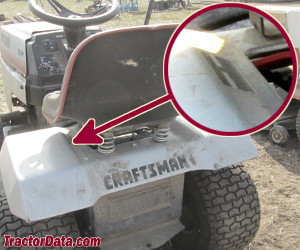

| 917.25455 Serial Number Location | |
 | |
| Serial number tag on the rear fender deck, under the seat. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Craftsman Tractors and Rear Engine Riders published in 1988, by Sears |
