Toro Z5030 74373 Engine


No photo available
2009
TimeCutter Z Series
Zero-turn mower
Series map:
Z5020
Z5030
Z5035
23.0hp
23.0hp
24.0hp

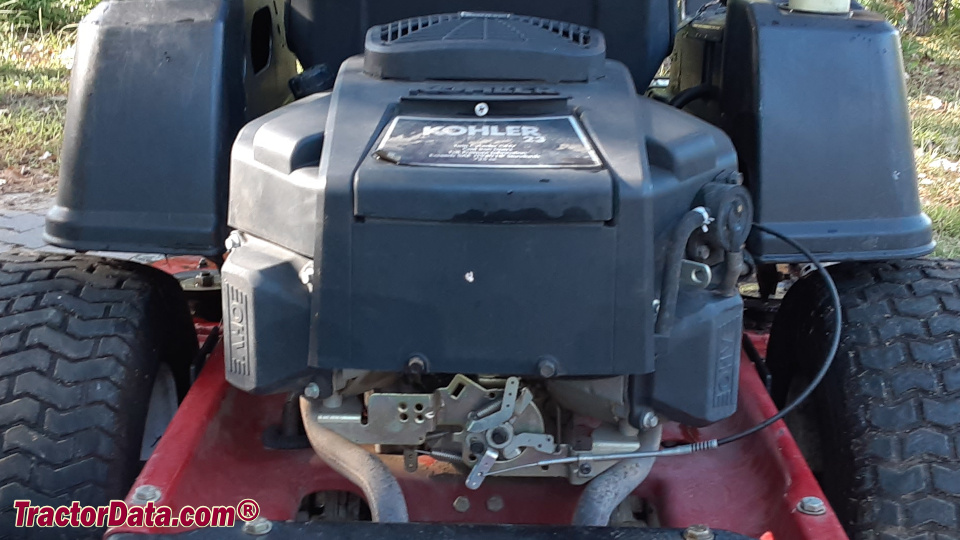

Engine Detail
Kohler SV720
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement724 cc
44.2 ci
Bore/Stroke3.27x2.64 inches
83 x 67 mm
Power (gross)23 hp
17.2 kW
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L
SparkplugChampion XC12YC
Sparkplug gap0.030 inches
0.762 mm
