Jacobsen 1000 53201

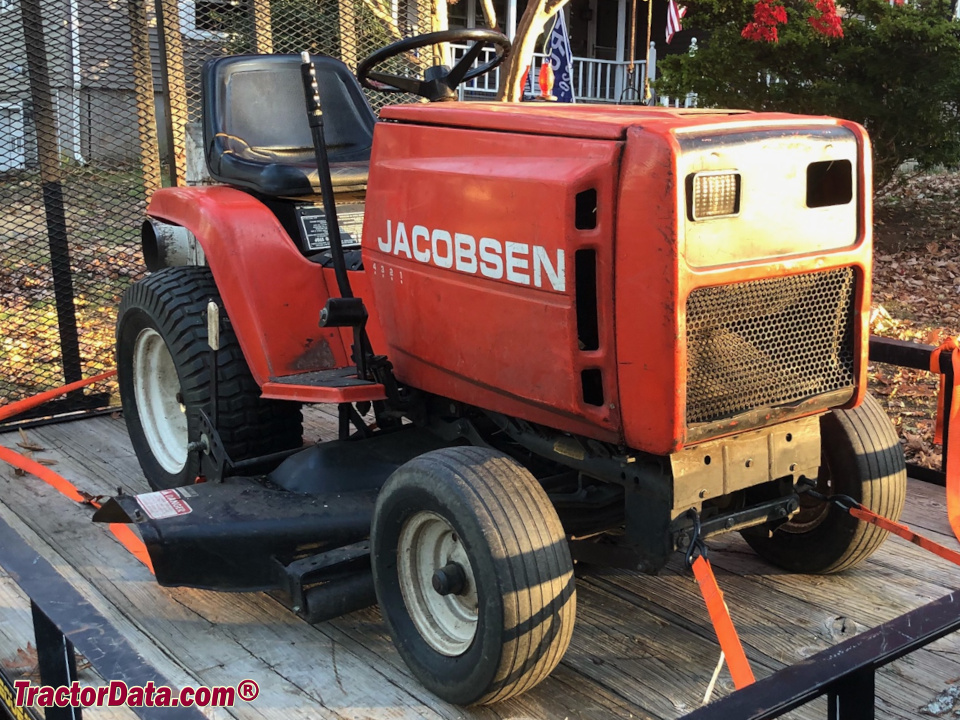

Jacobsen 1000 53201 tractor photo
1977 - 1980
1000 Series
Garden tractor
Series map:
1000
1200
10.0hp
12.0hp
Production
ManufacturerJacobsen (a part of Textron)
Garden tractor
Built in Racine, Wisconsin, USA
Original price was $2,199 in 1979
Jacobsen 1000 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank2 gal
7.6 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type3300
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase46 inches
116 cm
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
Jacobsen 1000 attachments
42" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
Attachment details ...
1000 Serial Number Location

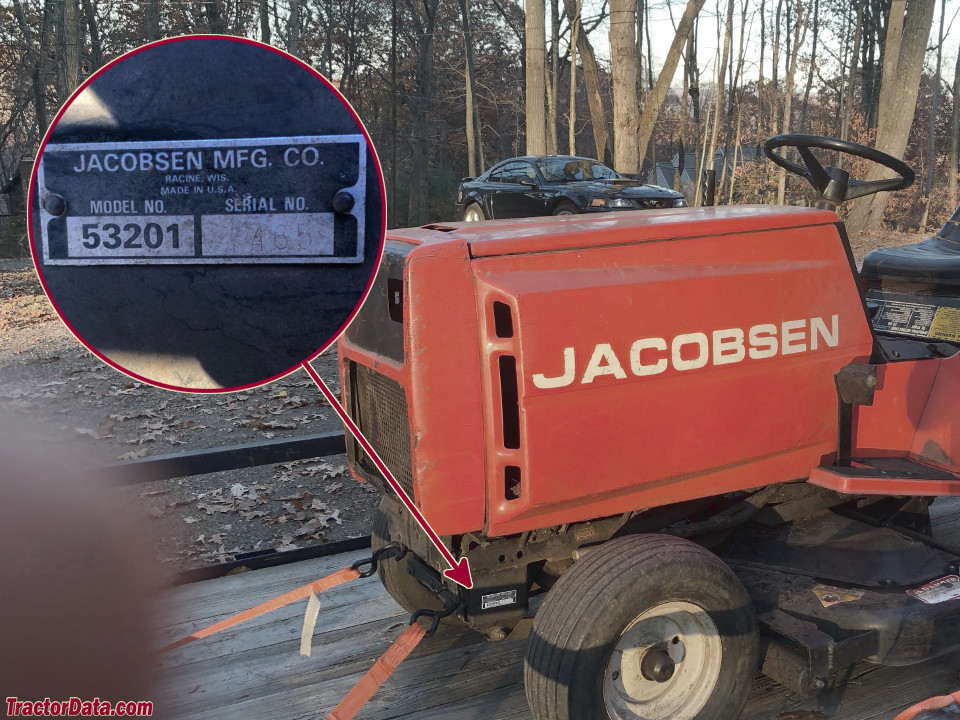

Jacobsen 1000 serial number location
Serial number plate on front right side of the 1000 frame, ahead of the the front axle.
Electrical
Groundnegative
Battery volts12
References
1000 53201 references literature
Tractors engineered to do more. published in 1978, by Jacobsen
