Ariens S-16H
| | 1976 - 1978 |
| S Series | | Garden tractor |
|
| Production |
| Manufacturer | Ariens
|
| Garden tractor |
| Built in Brillion, Wisconsin, USA |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| Drum brakes |
| Open operator station. |
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Power Take-off (PTO) |
| Front PTO | independent
|
| Clutch | electric
|
| Front PTO Type | 3600
|

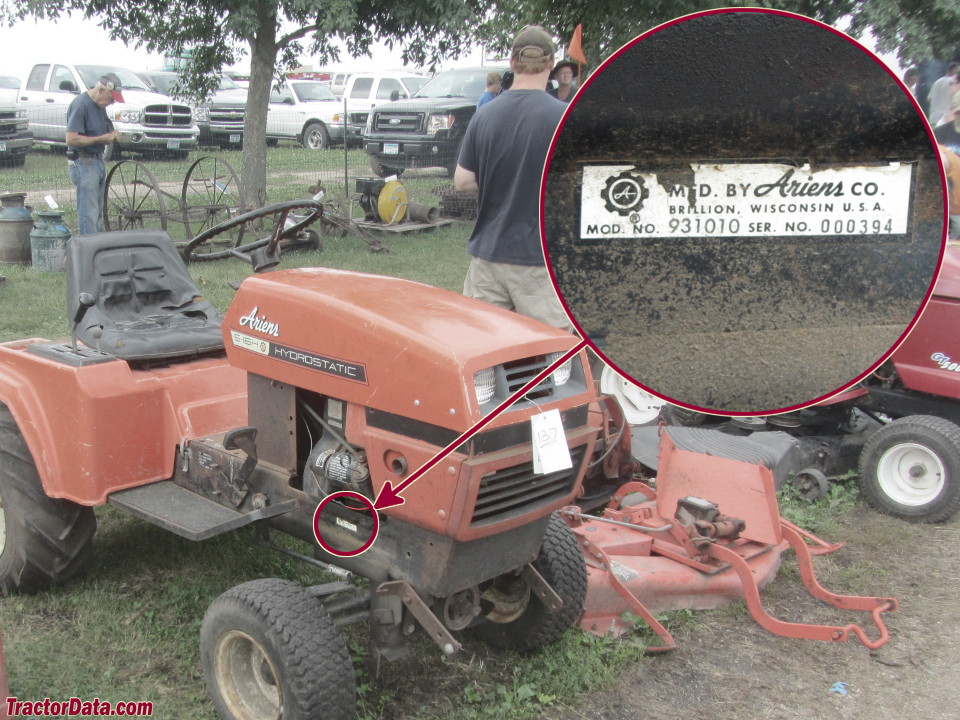

| S-16H Serial Number Location |
 |
| Serial number on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | flywheel alternator
|
| Charging amps | 15
|
| Battery CCA | 255
|
| Battery volts | 12
|
| Battery AH | 39
|
| References |
 |
| Tractor Power published in 1974, by Ariens |
| Lawn & Garden Tractors published in 1976, by Ariens |
| Hydrostatic Drive Garden Tractors published in 1977, by Ariens |
| Owner's Manual Hydrostatic Garden Tractors (31723) published in 1977 |
| Hydrostatic Drive Garden Tractors published in 1978, by Ariens |
